SMARC 2.1 computer-on-module SOM-SMARC-APL

size-SIntel® AtomIntel® Atom x7-E3950

Overview

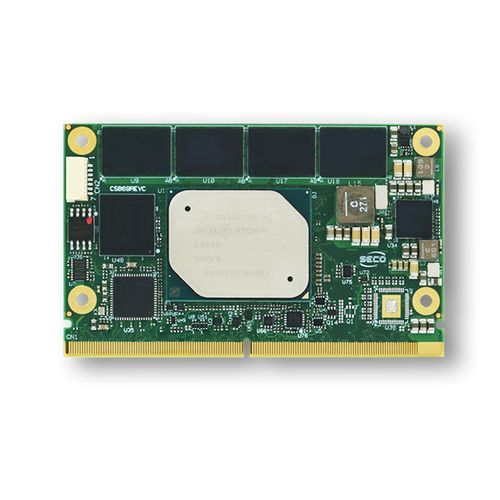

The SOM-SMARC-APL is a SMARC Rel. 2.1 compliant Computer on Module (CoM) based on Intel® Atom™ X Series, Intel® Celeron® J/N Series and Intel® Pentium® N Series (Apollo Lake) processors. The module supports up to 3 independent displays and 4K hardware decode/encode (HEVC H.265, H.264, VP8, SVC, MVC). It integrates soldered LPDDR4-2400 memory up to 8 GB, optional onboard eMMC 5.0, up to 2x Gigabit Ethernet and 2x MIPI CSI camera interfaces, and measures 50 x 82 mm. Commercial and industrial temperature versions available.

Highlights

• CPU options: Intel® Atom™ x5-E3930, x5-E3940, x7-E3950; Intel® Pentium® N4200; Intel® Celeron® N3350, J3455, J3355
• Graphics: Integrated Intel® HD Graphics 500/505, up to 18 Execution Units
• Memory: Soldered LPDDR4-2400 up to 8 GB
• Displays: Up to 3 independent displays; DP++ up to 4096x2160@60Hz, eDP up to 3840x2160@60Hz, HDMI up to 3840x2160@30Hz

Security & Software

• Built-in Secure Boot for system integrity from first startup
• OTA updates for remote and secure software distribution
• Device monitoring for continuous status and activity checks
• Yocto-based OS integration for customizable, secure builds
• Certified compliance with EN18031-1
• Container support (Docker) for isolated application management
• Integration with Clea for security monitoring, patching and update automation
• Optional TPM 1.2 / 2.0

Technical specifications

• Model: SOM-SMARC-APL (SMARC Rel. 2.1)
• CPU: Intel® Atom™ x5-E3930 / x5-E3940 / x7-E3950; Intel® Pentium® N4200; Intel® Celeron® N3350 / J3455 / J3355
• Max cores: 4
• Memory: Single/Dual/Quad-channel soldered LPDDR4-2400, up to 8 GB
• Graphics: Integrated Intel® HD Graphics 500/505, up to 18 EUs; 4K HW decode/encode
• Video interfaces: eDP or dual-channel LVDS (via bridge); HDMI; DP++; 2x MIPI CSI
• Storage: Optional onboard eMMC 5.0; external SATA Gen3 channel; SD interface
• Networking: Up to 2x Gigabit Ethernet (Intel® I210 or I211)
• USB: 6x USB 2.0 Host; 2x USB 3.0 Host
• PCI: 4x PCIe root ports
• Audio: HD Audio; I2S
• Serial: 2x 2-wire HS-UARTs; 2x 4-wire UARTs
• Other I/O: Up to 14x GPIOs; I2C; SMBus; 2x SPI; fan management; power management signals
• Power supply: +5 VDC and +3.3 V_RTC
• Operating systems: Microsoft® Windows 10 Enterprise (64-bit); Windows 10 IoT Core; Linux; Yocto
• Operating temperature: Commercial 0°C to +60°C; Industrial -40°C to +85°C (measured on SECO heatspreader)
• Dimensions: 50 x 82 mm
• Part numbers: Multiple RB69 variants available with different CPU, RAM, eMMC and I/O options
