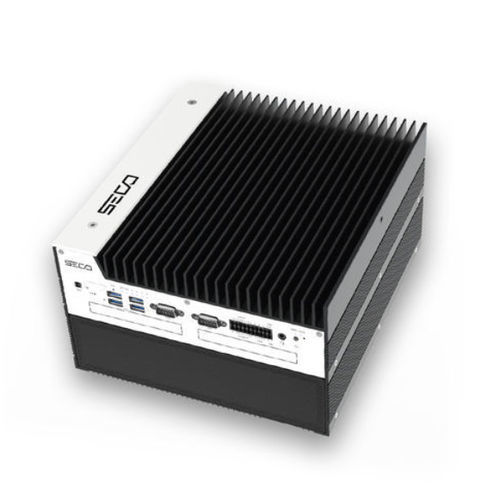

Edge AI PC PN-Palladio-500-RPL-AI

AIAI InferenceGPU

Overview
The Palladio 500 RPL AI is a modular embedded PC / high-performance industrial workstation for edge AI and advanced graphics applications, powered by 13th Gen Intel® Core™ processors and Intel® Arc™ Pro B50 Graphics. It is designed for AI-optimized workloads, multi-display graphics and industrial connectivity.

Highlights

• CPU: 13th Gen Intel® Core™ i3 / i5 / i7 / i9 Processors
• AI Accelerator: Intel® Arc™ Pro B50 powered AI acceleration (up to 170 INT8 TOPS)
• Memory: Up to 32 GB SO-DIMM DDR4 2666
• Graphics: Intel® Arc™ Pro B50 Graphics with support for 16 GB DDR6 VRAM and up to four independent displays at up to 8K60
• Connectivity: 2x 2.5 GbE LAN (2x PoE optional), optional Wi‑Fi/BT

Security & Software

• Built-in Secure Boot to ensure system integrity from first startup
• OTA Updates: remote and secure software update distribution
• Device Monitoring: continuous monitoring of device status and activity via Clea
• Secure Operating System: Yocto-based OS integration for customizable and secure system builds
• Certified Security: compliance with EN18031-1 standards
• Docker Technology: isolated and flexible application management through containerization

Caractéristiques / Spécifications techniques

• Description: Modular embedded PC with 13th Gen Intel® Core™ processors and Intel® Arc™ Pro B50 Graphics. High-performance industrial workstation for edge AI and advanced graphics applications.
• CPU Description: 13th Gen Intel® Core™ (Raptor Lake-P). Supported SKUs include:
  • Intel® Core™ i3-13100E — 3.3 ~ 4.4 GHz, 4 cores, 8 threads — 60 W TDP
  • Intel® Core™ i3-13100TE — 2.1 ~ 4.1 GHz, 4 cores, 8 threads — 35 W TDP
  • Intel® Core™ i5-13500E — 2.4 ~ 4.6 GHz, 14 cores, 20 threads — 65 W TDP
  • Intel® Core™ i5-13500TE — 1.3 ~ 4.5 GHz, 14 cores, 20 threads — 35 W TDP
  • Intel® Core™ i7-13700E — 1.9 ~ 5.1 GHz, 16 cores, 24 threads — 65 W TDP
  • Intel® Core™ i7-13700TE — 1.1 ~ 4.8 GHz, 16 cores, 24 threads — 35 W TDP
  • Intel® Core™ i9-13900E — 1.8 ~ 5.2 GHz, 24 cores, 32 threads — 65 W TDP
  • Intel® Core™ i9-13900TE — 1.0 ~ 5.0 GHz, 24 cores, 32 threads — 35 W TDP
• Memory Description: Up to 32 GB SO-DIMM DDR4 2666 (optional)
• Graphics Description: Intel® Arc™ Pro B50 Graphics powered graphics with 16 GB DDR6 VRAM support. Support for up to four independent displays at up to 8K60 resolution.
• Video Interfaces: 2x DisplayPort
• Video Resolution: Up to 4K @ 60 Hz (per listed interfaces)
• Mass Storage: 1x M.2 2280 (SATA); 1x M.2 2280 (PCIe Gen4 x4; SATA); 1x M.2 2280 (PCIe Gen4 x4); 2x SATA 2.5" drives (optional hot-swap)
• Networking: Intel® embedded M.2 2230 802.11ac Wi‑Fi + BT 5.1 card with cables (optional); dual-band terminal antenna (optional); 2x 2.5 GbE LAN (2x PoE optional)
• USB: 6x USB 3.2 Gen 2 ports
• PCI: 1x mPCIe (PCIe x1; USB 2.0); 1x M.2 2230 E-key (PCIe x1; USB 2.0); 1x M.2 2280 M-key (PCIe Gen4 x4); 1x M.2 2280 M-key (PCIe Gen4 x4; SATA); 1x M.2 3042/3052/2280 B-key (PCIe x2; USB 2.0; USB 3.0; SATA); factory option: 1x PCIe Gen4 x16 or 2x PCIe Gen4 x8
• Audio: 1x 3.5 mm audio
• Serial Ports: 2x COM RS-232/422/485 ports
• Other Interfaces: 5-pin terminal block power input (12 ~ 48 VDC); 2x ModBay expansion 7–9.5 mm (optional); 1x GPIO terminal block (DIO, CAN, Ext. Switch); 2x 3FF Micro-SIM; 1x power button; 1x external fan connector; optional 2x 2.5" hot-swap drives
• Security: PTT in BIOS; TPM (optional); Watchdog timer
• Power Supply: 12 ~ 48 VDC (20 ~ 48 VDC when configured with PCIe expansion 70W or above)
• Operating System: Compatible with Linux, Windows
• Operating Temperature: -40 to 70°C (with 35W CPU); -40 to 50°C (with 65W CPU)
• Dimensions: 240 x 143 x 267 mm
• Part Number: PN-Palladio-500-RPL-AI
