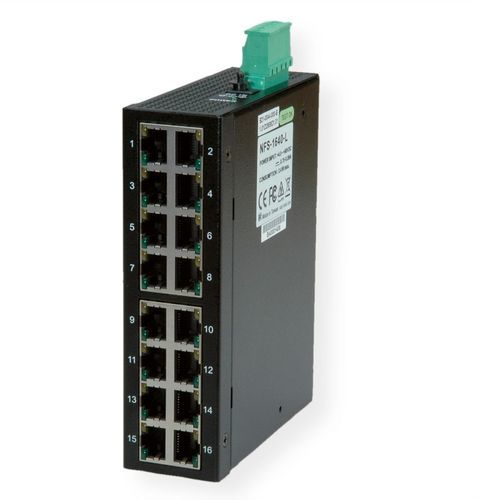

Unmanaged ethernet switch 21131157

16 portsfast ethernetDIN rail

○ Fast Ethernet switch with 16 shielded 10/100 Base-T copper ports ○ Wide operating temperature range for temperature critical environment ○ Auto MDI/MDI-X crossover function ○ Supports IEEE 802.3x flow control for full-duplex operation ○ Supports Back-pressure flow control for half-duplex operation ○ Supports DIN-rail mounting and panel mounting ○ Power: Input: 4.5 - 50V DC, Consumption: 3.4W (max.) ○ Operating Temperature: - 20 °C - +70 °C ○ DC Input via terminal block or DC power jack (6.3mm / 2.0mm) ○ Dimensions: 140 x 106 x 40 mm (WxDxH) ○ As according power supply we recommend 21.13.1226 ○ Contents: Switch LAN (Mbps) - 10/100 Quantity of ports - 16 Fast Ethernet Ports RJ-45 - 16 Mounting form - DIN Rail Management - no Stackable - no Technical particularity - - 20 ºC - +70 ºC Dimensions (HxWxD) - 140 x 40 x 106 mm Power supply unit (internal/external) - External Mains connection - Loose cable / screw terminals Operating temperature min. - -20 °C Operating temperature max. - 70 °C Height - 140 mm Width - 40 mm Depth - 106 mm Weight - 531.5 g Height of packaging (single piece) - 80 mm Width of packaging (single piece) - 150 mm Depth of packaging (single piece) - 210 mm Package weight (single piece) - 0.62 kg
