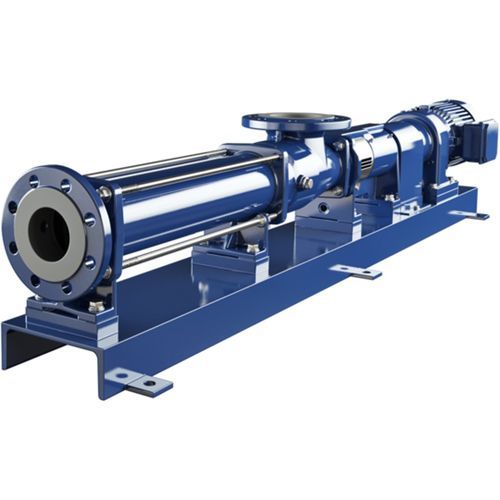

Progressive cavity pump NS

for chemicalswith electric motorstationary

MAXIMUM FLEXIBILITY AND EASY MAINTENANCE FOR ALL DRIVE TYPES The standard pumps of the NS range have a drive casing with a free bare shaft, which allows all drive types to be mounted. The universal configuration of the drive systems offers maximum flexibility. The easy maintenance of the plug connection between the rotating unit and drive shaft simplifies replacement of the rotating wearing parts and the shaft seal. FLEXIBLE Thanks to the free bare shaft, it is possible to mount a wide variety of drive types – e.g. elastic couplings or V-belts EASY MAINTENANCE Simple maintenance without dismantling the bearing thanks to a quick-release plug connection between the unit and drive system LOW PULSATION Gentle, even pumping flow without dampeners or condensers – particularly suitable for sensitive pumping media FLEXIBLE INSTALLATION OPTIONS Depending on the on-site conditions, installation is possible in a horizontal or vertical position with a large, rotatable, spherical suction intake COMPATIBLE Available with various rotor/stator geometries and a wide range of different shaft seals – tailored to suit any conveying process SCT RETROFIT OPTION Retrofit option for the particularly maintenance-friendly Smart Conveying Technology (SCT)
