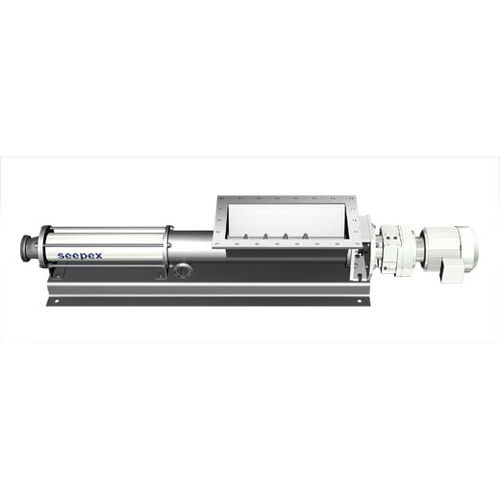

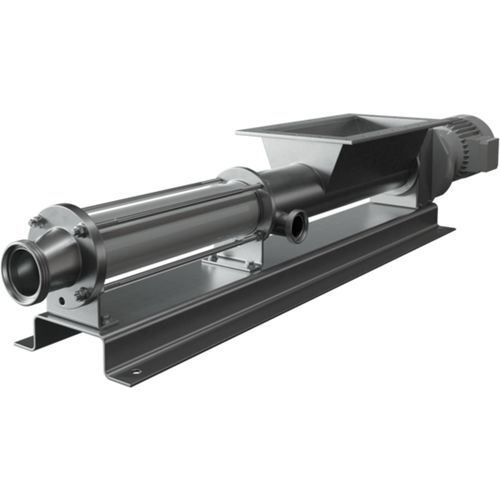

Food product pump BTCS series

electricself-primingscrew

For pumping highly viscous products with a low degree of flowability. Open hopper pump with cylindrical/conical compression zone and auger feed screw Optionally open or closed joint Manufactured in keeping with the regulations of the 3A-Sanitary Standards and the EHEDG directives Conveying capacities: 30 l/h - 130 m³/h | 0.132 USGPM - 572 USGPM Pressures: up to 24 bar | 360 PSI The BTCS range features a feed hopper with a cylindrical/conical compression zone. Highly-viscous conveying media with a low degree of flowability are fed to the conveying elements rotor and stator through the auger feed screw on the coupling rod. Optimum filling of the conveying chamber is achieved through the priming pressure generated in the compression zone. The pumps of the BTCS range are optionally equipped with the open, service-friendly joints or with the proven, closed pin joints.
