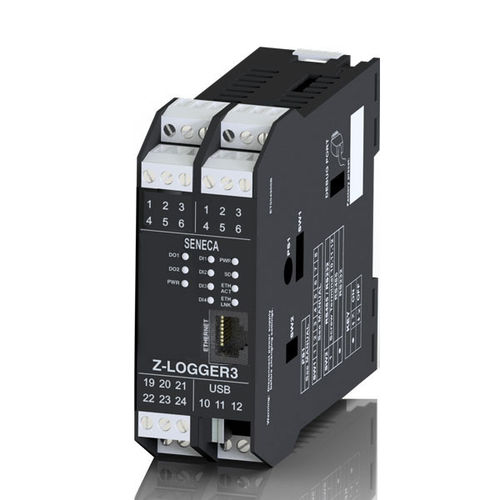

Wireless datalogger Z-LOGGER3

EthernetModbuswithout display

Z-LOGGER3 is a datalogger that can meet the growing demands of data acquisition, analysis in real-time, and integration with IT systems existing in automation and system/process monitoring. In line with the new productivity and communication models of Industry 4.0 and the Internet of Things, it is characterized by 4 integrated communication ports (1 Ethernet 10/100, 1 RS232/RS485, 1 RS485, 1 MicroUSB), 8 integrated I/O channels (4DI/meters/totalizers, 2AI, 2DO), alarm management functions and support of Ftp, Smtp, HTTP rest, Modbus RTU, Modbus TCP-IP communication protocols. Z-LOGGER3 offers maximum opening towards the outside and third parties (PLC, HMI) thanks to the technology standards it complies with (ModBUS RTU Master/Slave, ModBUS TCP-IP Server/Client. This unit includes an 8MB Flash memory, a slot for microSD expandable up to 32GB, and a multi-tasking real-time operating system. Like all SENECA advanced dataloggers, Z-LOGGER3 has a built-in UPS that allows an operating autonomy of up to 1 hour in case of a lack of a primary power supply. This unit guarantees open and flexible programming, thanks to a dedicated environment for developing control logic (SeAL), an integrated Web Server, and a data import/display tool (Log Factory). Z-UMTS, Z-GPRS3, and Z-LOGGER3 can be integrated with SCADA, Cloud, databases, and third-party web portals already available in the systems or at the final users. TECHNICAL DATA Power supply - 11..40 Vdc 19..28 Vac Power consumption - 2 W (standby) 6,5 W (max) Insulation - 1500 Vac Protection degree - IP20 LED status - Ethernet I/O Communication (RX/TX) Power supply Operating temperature - -10..+50°C Dimensions (LxHxP) - 35x100x112 mm
