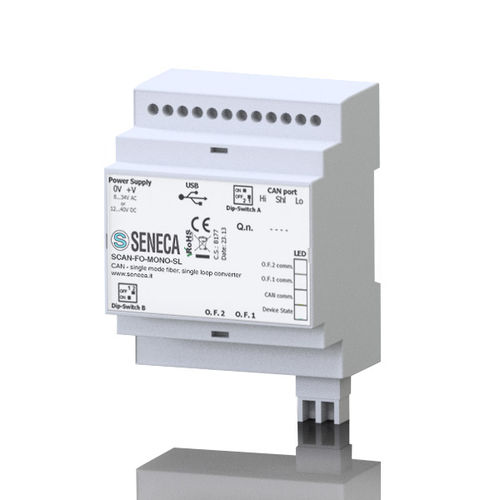

Communications converter SCAN-FO series

Ethernetoptical fiberModbus TCP

CAN to optical fiber converter. Single mode/multimode fiber - single loop/double loop converter. Power consumption @24V - 4 W Insulation - 4 kV a 3 vie Status indicators - Optical fiber communication, CAN communication, device status Operating Temp. - -40..+85°C Dimensions (wxhxd) - 71 x 95 x 60 mm Weight - 200 g Custodia - PVC, white Mounting - Guida DIN 46277 Configuration - Software SENECA Compositor Built-in diagnostics - Sì Standards - CE Norms - EN 61000-6-4, EN 61000-6-2 Communication port - N°1 CAN port N° max converters in series - 1.000 N° max independent networks - 6 Optical fiber ande connectors - Single mode, LC connectors (SCAN-FO-MONO-...); Multidrop (62,5/125 o 50/125 µm), ST/ST connectors (SCAN-FO-MULTI-...) Area Range - 10 km (SCAN-FO-MONO-...); 500 m (SCAN-FO-MULTI-...) Interface and protocols - Ethernet, ModBUS TCP-IP, trasparente ai protocolli di comunicazione Data rate - 10/100 Mbit
