RS-485 USB converter K107USB

RS-485 USB converter
RS-485 USB converter
Add to favorites
Compare this product


RS-485, serial
Other characteristics
industrial, isolated

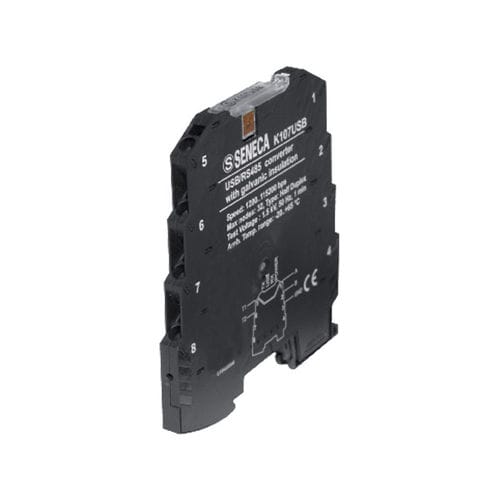

K107USB RS485/USB asyncronous serial converter K107USB is an interface able to implement a RS485 serial port by using a PC USB port. The available drivers will recognize the serial interface as a standard serial port; so the use of the product is directly allowed through any software able to communicate with the standard serial ports of the operating system (COM1, COM2, etc). RS485 and USB ports are isolated from each other at 1500 V. TECHNICAL DATA ORDER CODE :K107USB DESCRIPTION:DIN rail RS485/USB aynchronous serial converter POWER SUPPLY:powered by USB port MAX CONSUMPTION:60 mA OPERATING SYSTEMS:Windows 10/8.1/8/7, Vista, XP Windows Server 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 Linux kernel 3.0.0-19 and above Mac OS X 10.3 to 10.9 and above, Mac OS 9, Mac OS 8 Windows Mobile 6.5/5, Windows Mobile 2003SE/2003 Windows CE 2013, Windows CE 7.0/6.0, Windows CE 5.2-4.2 COMPATIBILITY:USB 1.1 and 2.0 DIMENSIONIS WXHXD:6,2x93,1x102,5 mm ACCESSORIES:Connection cable (USB side) and CD driver SHIPPING AND EXPORT INFORMATION PRODUCT CODEK107USB GROSS WEIGHT kg0,075 ORIGINIT TARIC85437090 ECCNEAR99
