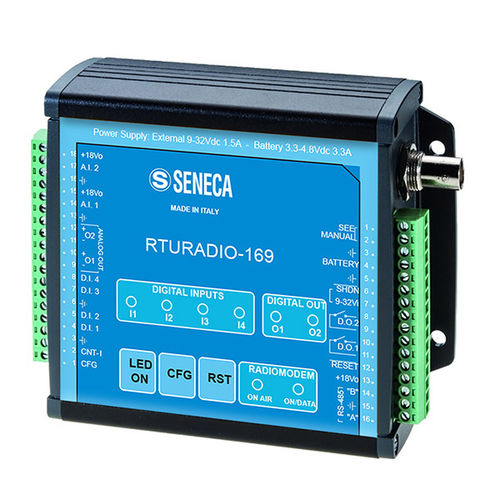

Radio modem RTURADIO-169 series

Data Terminal Unitpoint-to-pointrepeater

RADIORTU-169 is a radio modem device in 169,4 MHz with output power up to 500mW. NBFM (Narrow Band Frequency Modulation) product optimized to be powered by primary or secondary batteries for applications of Meter Reading, Tracking & Tracing, Telemetering & Commands in respect of European decision 2005/928/CE. The device, with 128-bit data transfer, uses the AES (Advanced Encryption Standard) high level of security. RTURADIO-169 has 4 digital inputs, 2 digital outputs, 2 analog inputs, 2 analog outputs, 1 RS485 serial connection and a counter input. RTURADIO-Setup is the suite for the complete configuration and allows RTURADIO-169 to be used also for acquisition and remote control applications. It is possible to configure different operational profiles: 1) point-to-point (eg. for I/O mirroring retransmission), 2) point-to-multipoint (eg. for data acquisition or sending more units commands arranged in separate points), 3) broadcasting (eg. for simultaneously sending-receiving multi-point, typical of a ModBUS RS485 network), 4) ModBUS in master/slave mode or multimaster (eg. becoming ModBUS nodes) Channels N° - 3 @ CH 25 kHz , 6 @ CH 12.5 kHz – European Decision 2005/928/CE Modulation - 9K00F1D o 18K0F1D (NBFM / GFSK) Data rate (radio) - 4,800 bps @ 12.5 kHz – 9,600 bps @ 25 kHz Operating Modes - Point-to-point, point-to-multipoint, broadcasting, ModBUS, Mesh networks Power supply - 9-32 Vdc with limited power source; 3,3-4,8 Vdc with battery power Dimensions (wxhxd) - 140 x 110 x 50 mm Embedded I/O - 4DI, 2DO (relè), 1 counter, 2AO (4-20 mA), 2 AI (4-20 mA) Output power - 500 mWERP Sensitivity - <-110 dBm @ 9.600 bps BER 10-2 Data rate - Da 2.400 a 57.400 bps
