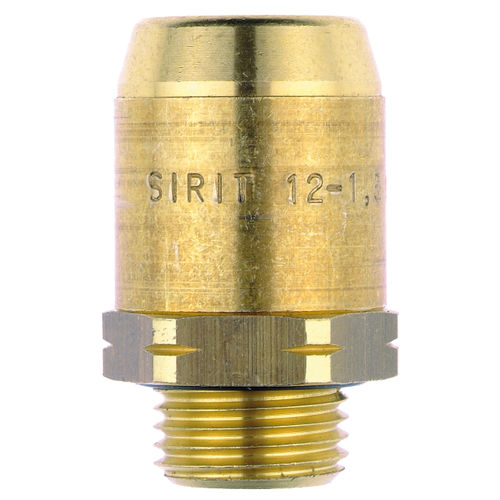

Compressed air fitting 7801screw-inquicksocket
Add to favorites
Compare this product
Characteristics
- Applications
- for compressed air
- Attachment
- screw-in, quick, socket
- Configuration
- 90° angle, 45° angle, T, cross
- Norms
- BSP
- Material
- brass
- Gender
- male, female
- Other characteristics
- bulkhead, 360° adjustable, for brake systems
- Diameter
Max.: 18 mm
(0.709 in)Min.: 6 mm
(0.236 in)- Operating pressure
Max.: 15 bar
(217.56 psi)Min.: 0 bar
(0 psi)
Description
The SIRIT-RTC rapid connection joints have been designed for use with 11/12 (Rilsan), 10/12 polyamide or elastomeric polyester (Hyltrel) tubes.
The tube tolerances and characteristics must strictly comply with the following rules: DIN 74324, DIN 73378, ISO 7628. No other pipe type can be used unless previously authorised.
Joints are generally manufactured with the following materials: EN 12164 CW614 N (CuZn39Pb3), EN 12165 CW617 N (CuZn40Pb2), PA66 GF30, PA 6.10 GF30, EPDM, NBR.
The estimated thermal tight seal of the threads is estimated to be between +100°C and -40°C with max. pressure of 15bar. The seal of the joint threaded part complies with rules ISO 6149 and DIN 3852.
The joint has been designed for use with air and is therefore unsuitable for use with
other fluids/gas.
