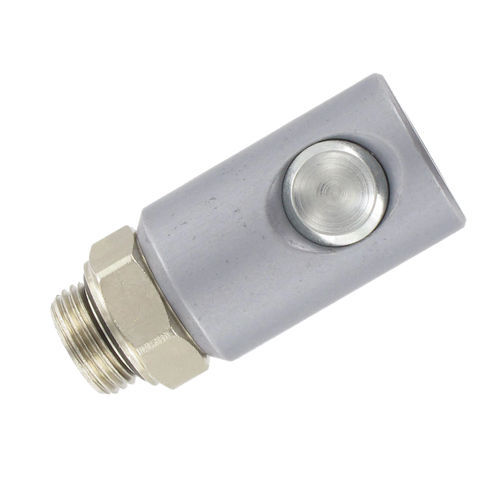

Compressed air fitting SN 40
threadedquickbarbed

compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
compressed air fitting
Add to favorites
Compare this product


Characteristics

Applications
for compressed air
Attachment
threaded, quick, barbed
Configuration
Y
Norms
BSP
Material
nickel-plated brass, aluminum, zinc-plated steel
Gender
male, female
Other characteristics
with O-ring, security, quick-disconnect, 360° adjustable, rugged, corrosion-proof
Diameter

Min.: 5.5 mm
(0.217 in)

0.25 mm, 0.38 mm, 12.7 mm

Max.: 8 mm
(0.315 in)

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 12 bar
(174.05 psi)

Description

Quick-connect safety couplings ISO 6150 C - Metal Series Technical features : Orifice : Ø5.5 mm and Ø8 mm Anti-hose whip safety : ISO 4414 standard ISO 6150 C-10 and ISO 6150 C-14 standards Interchangeable with Rectus 18 and 84 - CEJN 291 - PREVOST CSI 06 and CSI 08 - STAUBLI NSI Double push disconnection Section : 23.75 mm² and 50.26 mm² Working pressure : 0÷12 bar and 0÷10 bar Flow rate : 680 Nl/min and 1 460 Nl/min (at 6 bar, Δp = 1 bar) Working temperature : -20°C÷+70°C Single shut-off Available versions : male socket (G1/4, G3/8, G1/2), female socket (G1/4, G3/8, G1/2), socket with hose connection (6, 8, 10), 2 ways male distributor, 2 ways female distributor ✔ Anti-hose whip safety : ISO 4414 ✔ Two pushes, for a better safety ✔ Manually adjustable Applications : Industry, Garage, Food industry, Compressed air, Industrial pneumatics For any further information, please consult our catalogue.

Catalogs

No catalogs are available for this product.

See all of SENGA‘s catalogs
