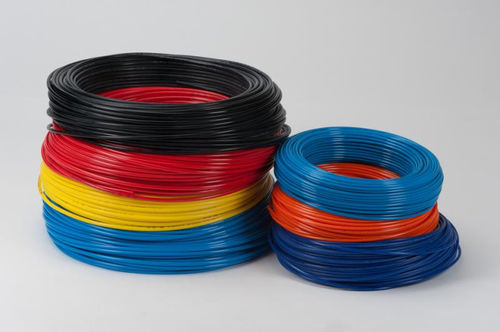

Hydraulic hose 025PA - 100PA
for compressed airpolyamidehigh-temperature

hydraulic hose
hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic, for compressed air
Material
polyamide
Applications
high-temperature, for vacuum, for petrochemical applications, for lubrication
Other characteristics
chemical-resistant
Inner diameter

Max.: 14 mm (0.551 in)

Min.: 1.5 mm (0.059 in)

Outer diameter

Max.: 18 mm (0.709 in)

Min.: 3 mm (0.118 in)

Pressure

Max.: 44 bar (638.166 psi)

Min.: 0 bar (0 psi)

Temperature

Max.: 80 °C (176 °F)

Min.: -40 °C (-40 °F)

Delivered length

Max.: 100 m (328'01")

Min.: 25 m (82'00")

Description

Polyamide hoses Areas of application : compressed air, vacuum Technical features - PA 12 construction - DIN 73378 norm - NFE 49100 - tolerance : ± 0,1mm - maximum working pressure at 20°C : see board - working temperature : -40°C ÷ 100°C
