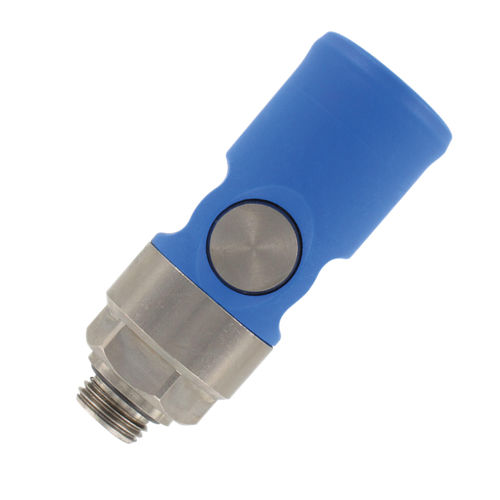

Quick coupling SP 21 pneumaticthreadedBSP
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- threaded, quick
- Norms
- BSP
- Material
- composite, aluminum
- Gender
- male
- Other characteristics
- with O-ring, security, quick-disconnect, 360° adjustable, rugged, corrosion-proof
- Diameter
Max.: 8 mm
(0.315 in)Min.: 5.5 mm
(0.217 in)- Operating pressure
Max.: 16 bar
(232.06 psi)Min.: 0 bar
(0 psi)
Description
Quick-connect safety couplings ISO 6150 B : non-scratch design and anti hose whip design
Standard ISO 6150 B-12 and ISO 6150 B-15 - Serie SP20
Orifice : Ø5.5 mm and Ø8 mm
Anti-hose whip safety : ISO 4414
Double push disconnection
Protected push-button
Connection force : 76 N and - N (at 6 bar)
Weight : 90 gr and - gr (G1/4'' male)
Section : 23.75 mm² and 50.26 mm²
Working pressure : 0÷16 bar and 0÷12 bar
Flow rate : 1000 Nl/min and 1650 Nl/min (at 6 bar, Δp = 1 bar)
Interchangeable with RECTUS 23/24 and 30 - PARKER PB/PBF - 1/4' and 3/8'' - CEJN 310 - PREVOST ISI 06 and ISI 08
Working temperature : -20°C÷70°C
A wide range to meet your needs...
Respects the operator, respects the surfaces...
Two pushes, for a better safety
Ergonomic design for an easy handling
Light weight and non-scratch design : external components in reinforced resin
Space optimized design
Manually adjustable
Applications : Industry, Garage, Food industry, Compressed air, Industrial pneumatics
