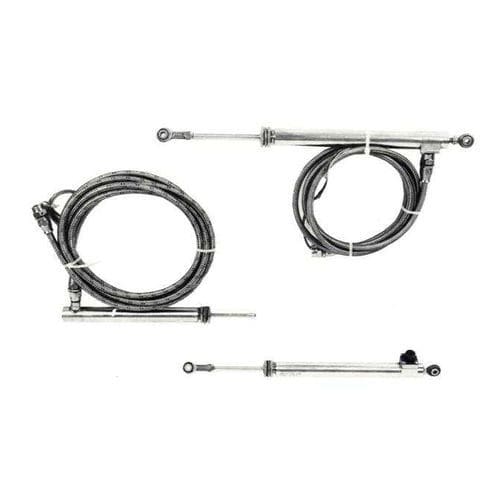

DC LVDT displacement transducer DR serieslinearnon-contactindustrial
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- DC LVDT
- Applications
- industrial, heavy-duty
- Other characteristics
- stainless steel
- Measuring range
25 mm, 50 mm, 100 mm, 150 mm
(0.98 in, 1.97 in, 3.94 in, 5.91 in)- Linearity
Max.: 0.5 %
Min.: 0.3 %
- Supply voltage
Max.: 24 V
Min.: 10 V
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
The DR series of LVDTs are designed for heavy industrial environments where a quick and easy to install displacement transducer is required.
The DR LVDT consists of a stainless steel body enclosing the transducer windings and signal conditioning.
The voltage input and output is via a connector, cable or conduit depending on the application and environment.
If moisture is a problem then a connector or cable version only gives limited prot ection whilst the conduit version enables the transducer to be fully submersed.
The SR series transducer can be supplied in a spring loaded format with either end exit or side exit or supplied with rod end (universal) bearings.
If temperatures are likely to exceed 900C or zero and gain controls are required then a Sensonics AC input AC output transducer should be used.
