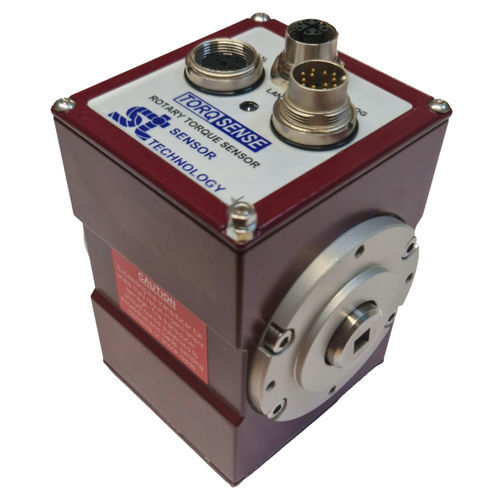

Rotary torque transducer SGR526

digitalUSB12VDC

The SGR525/SGR526 TorqSense Digital Rotary Strain Gauge Transducers (SGR series) utilise non-contact technology, eliminating the need for noisy slip rings. This makes them ideal for torque auditing applications. Specifically designed for square drives, these transducers offer a seamless fit, enhancing measurement accuracy and stability in applications with non-cylindrical shafts. The SGR series transducers use modern strain gauge signal conditioning techniques to provide a high bandwidth, low cost torque measuring solution with high overrange and overload capabilities and a wide range of digital outputs. Other Features BIT Self-diagnostics – Diagnostic system checks internal systems and operational conditions for faults, and monitors torque, speed and temperature for overscale conditions. Transducer status LED and simple “Sensor status” output pin, provides transducer health feedback. Sensors to monitor shaft temperature for better compensation and accuracy. Transducer Control software is provided to setup and configure the transducer. 3 analog channels are individually configurable, allowing changes to scaling and data assignment. Ability to connect up to 10 transducers using USB. Minimal side and end load errors Low linearity deviation of ± 0.05 % FSD Low hysteresis error of ± 0.05 % FSD Zero variation in torque signal with rotation (cyclic variation)
