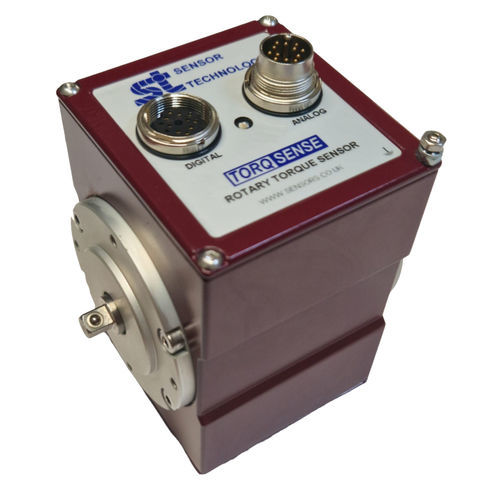

Rotary torque transducer SGR516

square driveanalogvoltage output

The SGR515/SGR516 Torqsense Rotary Strain Gauge Transducers (SGR series) utilise non-contact technology, eliminating the need for noisy slip rings. This makes them ideal for torque auditing applications. Specifically designed for square drives, these transducers offer a seamless fit, enhancing measurement accuracy and stability. The SGR series transducers employ advanced strain gauge signal conditioning techniques to deliver high-bandwidth analog outputs, available as fixed voltage or current signals for seamless integration with analog instrumentation. Three output channels are provided, with channel assignments depending on the specific model, offering a versatile and cost-effective torque measurement solution with excellent overrange and overload capabilities. Other Features BIT Self-diagnostics – Diagnostic system checks internal systems and operational conditions for faults, and monitors torque, speed and temperature for overscale conditions. Transducer status LED and simple “Sensor status” output pin, provides transducer health feedback. Sensors to monitor shaft temperature for better compensation and accuracy. Minimal side and end load errors Low linearity deviation of ± 0.05 % FSD Low hysteresis error of ± 0.05 % FSD Zero variation in torque signal with rotation (cyclic variation)
