Digital outputs signal conditioning module SBU-01

analog outputsfor encoder and sensor signalsfor strain gauges

Product overview

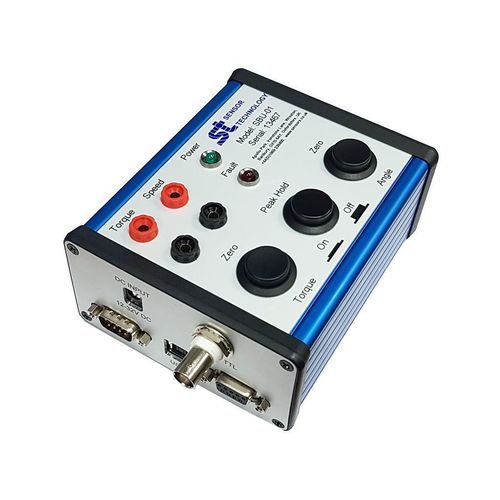

The SBU-01 signal breakout unit provides centralized access to all functions of Sensor Technology torque transducers. It exposes analog torque and speed outputs (or configurable user outputs), RS232, USB and optional CANbus interfaces. The unit also allows zeroing of the transducer and displays operational status for rapid diagnostics.

Benefits

• No need to add custom switches or wiring on the transducer
• Connects to the transducer via ACC-03 and/or ACC-04 interface cables
• Consolidates controls and outputs in a single accessible enclosure
• Facilitates testing, commissioning and troubleshooting

Features

• Analog outputs for torque and speed, or user-defined outputs
• Zeroing (tare) capability for the transducer
• Peak-hold enable function
• Visual indication of sensor/transducer status
• RPM TTL output
• RS232 output to PC (supports SGR52x, SGR54x, RWT42x, RWT44x, ORT24x series)
• USB output to PC (supports SGR52x, SGR54x, RWT42x, RWT44x, ORT24x series)
• Optional CANbus support

Resources

• Datasheet (PDF)
• Quick Start Guide (PDF)

Technical specifications

• Model: SBU-01
• Designed for use with Sensor Technology torque transducers
• Provides access to analog torque and speed outputs or configurable user outputs
• Zeroing/tare function
• Peak-hold enable
• Visual sensor status indicator
• RPM TTL output
• RS232 and USB outputs supported for SGR52x, SGR54x, RWT42x, RWT44x, ORT24x series
• Optional CANbus interface
• Connects via ACC-03 and/or ACC-04 interface cables
• Intended for testing, diagnostics and bench use
