Single-turn potentiometer RMP30H

manualHall effectfor control

Product

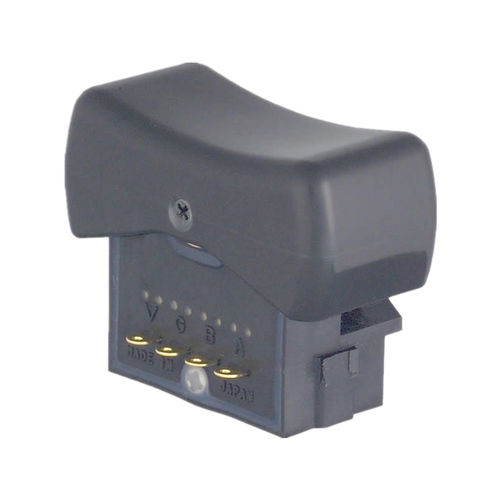

RMP30H is a 1-turn contactless magnetic potentiometer (Hall-effect) providing analog output for position control and adjustment applications.

Key features

• Hall-effect magnetic rotary sensor, contactless detection
• Seesaw (lever) operation
• Compact, light-weight construction (approx. 20 g)
• Protection rating IP65 for dust/water resistance
• Long mechanical life: approx. 5,000,000 operations

General specifications

• Model: RMP30H
• Type: 1-turn contactless magnetic potentiometer (Hall effect)
• Supply voltage: 5 V DC ±10%
• Current consumption: Approx. 7 mA (single), Approx. 14 mA (dual output)
• Independent linearity tolerance: ±3% FS
• Output voltage range: Approx. 10%–90% of Vin
• Effective electrical angle: 30° ±5°
• Operating angle range: ±15°–±19° from center
• Center returning accuracy: 50% ±3%
• Load resistance: >10 kΩ
• Operating force: Approx. 24–30 mN·m (D type knob: Approx. 48–60 mN·m)
• Output temperature characteristic: Within ±2.5% Vout·FS
• Drift at center position: Within ±0.9% Vout·FS
• Insulation resistance: >100 MΩ at 250 V DC
• Dielectric strength: 250 V AC, 1 minute
• Mass: Approx. 20 g

Environmental specifications

• Operating temperature range: -20 °C to +60 °C
• Vibration: 10–55 Hz, 98 m/s²
• Shock: 294 m/s²
• Protection grade: IP65
• EMC durability: 100 V/m
• ESD durability: ±8 kV contact / ±15 kV air (IEC 61000-4-2)
• Life expectancy: Approx. 5,000,000 operations

Special options

• Dual output / dual independent output available
• Heavier operating force option (not available with D type knob)

Dimensions & notes
Dimension drawing available for RMP30A / RMP30H models (refer to product dimension image). For application integration check mechanical mounting and electrical connections.

Compliance & usage
Recommended for industrial control and measurement applications requiring long life and ingress protection. Verify specifications against application requirements before integration.
