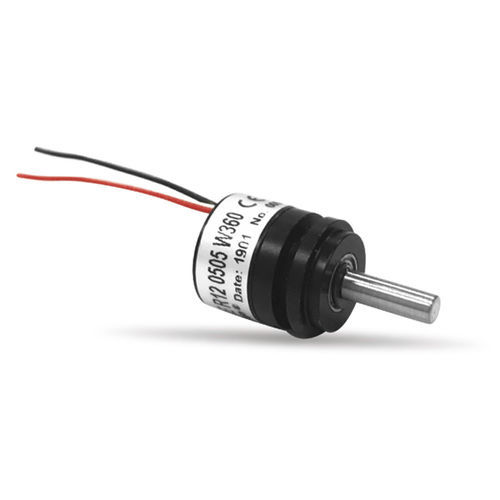

Hall effect magnetic sensor R12S
stainless steelsecurityhigh-sensitivity

Hall effect magnetic sensor - R12S - SENTOP by Shanghai Sibo M&E Co., Ltd. - stainless steel / security / high-sensitivity

Hall effect magnetic sensor - R12S - SENTOP by Shanghai Sibo M&E Co., Ltd. - stainless steel / security / high-sensitivity

Hall effect magnetic sensor - R12S - SENTOP by Shanghai Sibo M&E Co., Ltd. - stainless steel / security / high-sensitivity - image - 2

Add to favorites

Compare this product

Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information

Characteristics

Technology: Hall effect
Other characteristics: security, high-sensitivity, stainless steel, ultraminiature, low-hysteresis

Description

R12S 1-turn Contactless Magnetic POT. Magnetic rotary sensor (Hall effect) High protection degree Pocket size (Housing dia.Φ12mm) With one couple of precision ball bearings Servomount Mechanical angle 360º(Endless) Protection degree IP65 Operating torque <1mN·m Life expectancy 100,000,000 Mass Approx.10g Housing material Anodized aluminium alloy Shaft material Stainless steel Operating temperature range -40℃～+125℃ Storage temperature range -40℃～+125℃ ESD durability Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009 EMS durability 10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010"

VIDEO

Catalogs

CONTACTLESS POTENTIOMETER R12S

CONTACTLESS POTENTIOMETER R12S

2 Pages

Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information
