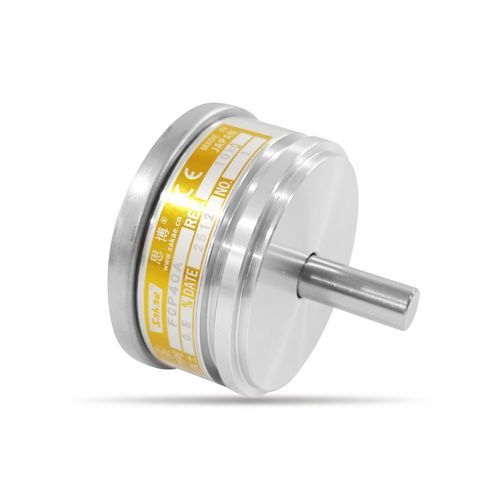

Single-turn potentiometer FCP40A

manualconductive plastic

Product
FCP40A — 1-turn conductive plastic potentiometer (servomount).

Features

• Single turn, servomount
• Conductive plastic resistive element
• Low starting torque and smooth output

General specifications
Standard resistance range: 1K, 2K, 5K, 10K (Ω)
Special practical resistance values: 500, 20K, 50K, 100K, 200K (Ω)
Total resistance tolerance: Standard Class ±10% (K)
Independent linearity tolerance: Standard ±0.5%, Precision ±0.25%, Super precision ±0.1%
Resolution: Essentially infinite
Output smoothness: <0.1% (against input voltage)
Contact resistance variation: <2% C.R.V.
Power rating: 2.0 W
Electrical travel: 340° ±5°
Mechanical travel: 360° (endless)
Insulation resistance: >1000 MΩ (1000 V DC)
Dielectric strength: 1 minute at 1000 V AC
Starting torque: <3 mN·m (30 gf·cm)
Resistance temperature coefficient: ±400 ppm/°C
Mass: Approx. 60 g

Special specifications available

• Special shaft types: front and rear extension; rear shaft Ø6 mm length 15 mm; shaft dia. Ø6.35 mm (inch); special machining on shaft
• Special electrical travel (custom)
• Extra taps: available up to 3 taps
• With stopper: rotating angle 320°, stopper strength 0.9 N·m (9 kgf·cm)
• Multi-ganged units: available up to 7 gangs (housing length extended by 12 mm per gang)

Technical summary

• Model: FCP40A
• Type: 1-turn conductive plastic potentiometer (servomount)
• Resistance options: Standard 1K, 2K, 5K, 10K Ω; special 500, 20K, 50K, 100K, 200K Ω
• Total resistance tolerance: ±10% (K)
• Linearity options: ±0.5% / ±0.25% / ±0.1%
• Power rating: 2.0 W
• Electrical travel: 340° ±5°
• Mechanical travel: 360° continuous
• Insulation resistance: >1000 MΩ (1000 V DC)
• Dielectric strength: 1000 V AC, 1 min
• Contact resistance variation: <2% C.R.V.
• Output smoothness: <0.1%
• Starting torque: <3 mN·m (30 gf·cm)
• Resistance temperature coefficient: ±400 ppm/°C
• Mass: Approx. 60 g
