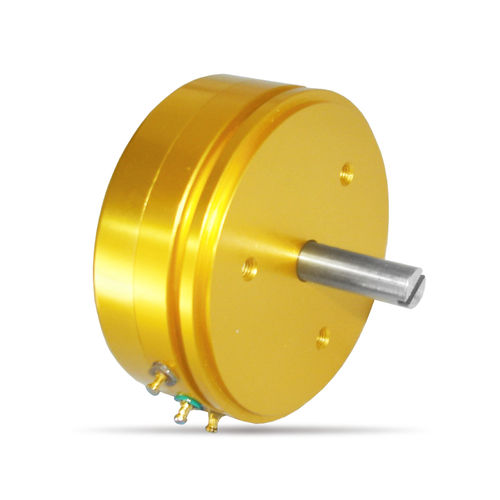

Single-turn potentiometer WDD50
manualfor industrial applicationsconductive plastic

Single-turn potentiometer - WDD50 - SENTOP by Shanghai Sibo M&E Co., Ltd. - manual / for industrial applications / conductive plastic
Single-turn potentiometer - WDD50 - SENTOP by Shanghai Sibo M&E Co., Ltd. - manual / for industrial applications / conductive plastic
Single-turn potentiometer - WDD50 - SENTOP by Shanghai Sibo M&E Co., Ltd. - manual / for industrial applications / conductive plastic - image - 2
Add to favorites
Compare this product
Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information

Characteristics

Configuration
single-turn
Operation
manual
Other characteristics
for industrial applications, conductive plastic

Description

Product
Conductive plastic 1-turn potentiometer WDD50 designed for continuous rotary applications; anodized aluminium housing and stainless steel shaft for industrial environments.

Characteristics
  • Resistive element: conductive plastic
  • Mounting: screw & servo mount
  • Bearings: one pair of precision ball bearings


Dimension
Dimension drawing available for the WDD50 product.

General Mechanical Specifications
Mechanical angle: 360º (endless)
Protection degree: IP40
Operating torque: <1mN·m
Life expectancy: 20,000,000 cycles
Mass: Approx. 90 g
Bearing: one pair of precision ball bearings
Housing material: anodized aluminium alloy
Shaft material: stainless steel
Wiper material: precious metal multi-finger wiper

Environmental Specifications
Operating temperature range: -55℃～+125℃
Storage temperature range: -55℃～+125℃
Shock: 50G 11ms
Vibration: 15G / 10Hz ~ 2000Hz

General Electrical Specifications
Standard resistance: 1K, 2K, 5K, 10K
Resolution: essentially infinite
Resistance tolerance: ±15%
Independent linearity tolerance: standard ±0.2%; precision ±0.1%
Electrical angle: 355°±2°
Power rating: 2W
Wiper current: μA～1mA (Max. 2mA)
Insulation resistance: ≥1000MΩ (500V D.C.)
Dielectric strength: 500V A.C. / 1 min
Output smoothness: <0.1% against input voltage
Resistance temperature coefficient: ±400 P.P.M/°C

Special Specifications Available
Special resistance values, special electrical angle, special machining on the shaft available on request.

Technical characteristics
  • Model: WDD50
  • Type: 1-turn conductive plastic potentiometer
  • Mechanical angle: 360º (endless)
  • Electrical angle: 355°±2°
  • Standard resistance options: 1K / 2K / 5K / 10K
  • Power rating: 2W
  • Operating torque: <1mN·m
  • Life expectancy: 20,000,000 cycles
  • Protection degree: IP40
  • Operating temperature: -55℃ to +125℃
  • Housing: anodized aluminium alloy
  • Shaft: stainless steel
  • Bearing: precision ball bearings (one pair)
  • Wiper: precious metal multi-finger
  • Mass: Approx. 90 g
  • Linearity: standard ±0.2% / precision ±0.1%
  • Insulation resistance: ≥1000MΩ (500V D.C.)
  • Dielectric strength: 500V A.C. / 1 min
