Single-turn potentiometer CP50

manualwire-woundwire-wound

Product

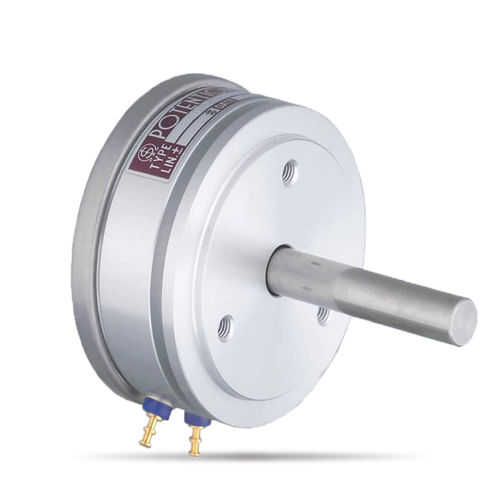

1-turn wire-wound potentiometer CP50 — servomount.

Characteristics

• Single turn
• Wire-wound element
• Servomount with ball bearing

General Specifications
Standard resistance range: 50Ω–20KΩ
Max. practical resistance value: 50KΩ
Total resistance tolerance: Standard ±3% (H), Precision ±1% (F)
Independent linearity tolerance: Standard ±0.5%, Precision ±0.1% (±0.2% for ≤2KΩ)
Power rating: 1.5 W
Noise: <100Ω E.N.R.
Electrical travel: 355° ±3°
Mechanical travel: 360° (endless)
Insulation resistance: >1000 MΩ (1000 V DC)
Dielectric strength: 1 min at 1000 V AC
Starting torque: <5 mN·m (50 gf·cm)
Resistance temperature coefficient: ±20 p.p.m./℃
Mass: approx. 75 g

Special Specifications Available

• Oil-filled variant available
• Special resistance values: lower values (10Ω, 20Ω)
• Special shaft types: front and rear extensions (rear shaft: Ø6 mm × 15 mm), inch-dimension shaft Ø6.35 mm, special shaft machining
• Custom electrical travel
• Extra taps (up to 10)
• Spring-return device (automatic return to zero)
• With stopper: rotating angle 330°, stopper torque 0.9 N·m (9 kgf·cm)
• Special mounting: bushing-mount type
• Multi-ganged up to 7 gangs (housing length +12 mm per gang)

Technical Specifications

• Model: CP50
• Type: 1-turn wire-wound potentiometer (servomount)
• Standard resistance range: 50Ω–20KΩ
• Max. practical resistance: 50KΩ
• Total resistance tolerance: ±3% (H) / ±1% (F)
• Linearity tolerance: ±0.5% standard / ±0.1% precision
• Power rating: 1.5 W
• Electrical travel: 355° ±3°
• Mechanical travel: 360° (endless)
• Insulation resistance: >1000 MΩ (1000 V DC)
• Dielectric strength: 1000 V AC, 1 min
• Starting torque: <5 mN·m
• Resistance temperature coefficient: ±20 p.p.m./℃
• Mass: approx. 75 g
