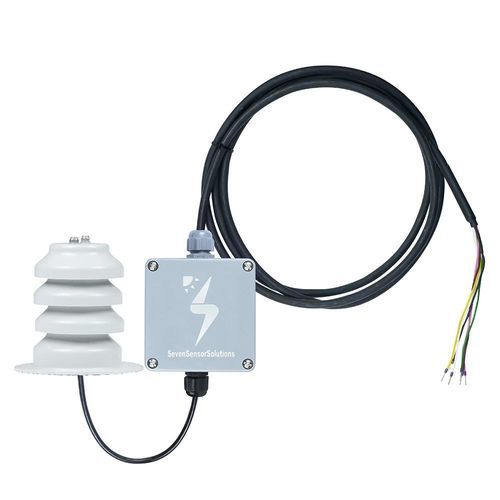

Pt1000 temperature sensor 3S-AT-PT1000-MB

RS-485Modbus RTUbare wires

Overview

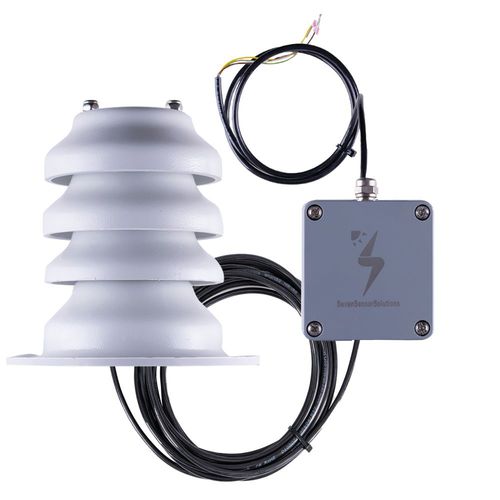

The 3S-AT-PT1000-MB ambient temperature sensor measures air temperature using a PT1000 probe and transmits values via RS485 using the Modbus RTU protocol. It is supplied with a UV-stabilized plastic radiation shield (four aspirated plates) and a pre-drilled mounting base to protect readings from direct solar radiation. The sensor is designed for PV plant monitoring and industrial environmental measurements and complies with IEC 60751:2022 and IEC 61724-1:2021 (Annex B).

Product Details
3S-AT-PT1000-MB is an intelligent professional sensor with a digital RS485 interface supporting baud rates up to 38400. The probe is housed in a stainless-steel tube and the radiation shield is UV-stabilized ABS. Typical application: monitoring ambient temperature to support PV system performance analysis (ambient temperature influences cell temperature, air density and heat transfer).

Installation
The sensor is delivered with a pre-assembled radiation shield and mounting base. Fix the assembly on a flat surface or mast using screws through the provided holes. Route cables through the supplied cable gland and ensure the shield remains unobstructed to allow natural airflow.

Why choose this Ambient Temperature Sensor?

• Includes UV-stabilized radiation shield for reduced solar bias.
• Quick, secure installation with pre-drilled mounting holes.
• Designed and tested to IEC 60751:2022 Class A and IEC 61724-1:2021 Annex B for high measurement reliability.

Additional Product Information (FAQ highlights)

• Class: Class A according to IEC 60751:2022.
• Warranty: 2-year warranty for 3S-AT-PT1000-MB sensors.
• Price: Indicative range 145 EUR – 260 EUR.
• Delivery time: Small orders (≤5 units): ~1–2 weeks; Bulk (≤100 units): ~5–7 weeks.
• Cables included: 1 m 2x2x0.22 mm² (24 AWG) L12YC11Y-TP PUR and 2 m 3x2x0.22 mm² L12YC11Y-TP PUR, UV and weather resistant.

Technical specifications

• Item Code: 3S-AT-PT1000-MB
• Sensor Type: PT1000
• Measuring Range: -40°C to +85°C
• Accuracy: ±0.1°C (Class A IEC 60751:2022)
• Resolution: 0.1°C
• Data Output: RS485 up to 38400 Baud
• Communication Protocol: Modbus RTU
• Power Supply: 12 to 30 V DC
• Power Consumption: 15 mA @ 24 V DC
• Cables: 1 m 2x2x0.22 mm² L12YC11Y-TP PUR and 2 m 3x2x0.22 mm² L12YC11Y-TP PUR (weather and UV resistant)
• Operating Temperature Range: -40°C to +85°C
• Box Dimensions: 80 mm x 82 mm x 55 mm (W x L x H)
• Shield Dimensions: Ø 105 mm x 100 mm
• Weight: 500 g
• IP Rating: IP67
• Box Material: ABS
• Sensor Housing Material: Stainless steel tube
• Shield Material: UV-stabilized ABS
• Mounting Method: Ground or mast mounting
• Standards: Class A according to IEC 60751:2022; IEC 61724-1:2021 (Annex B)
