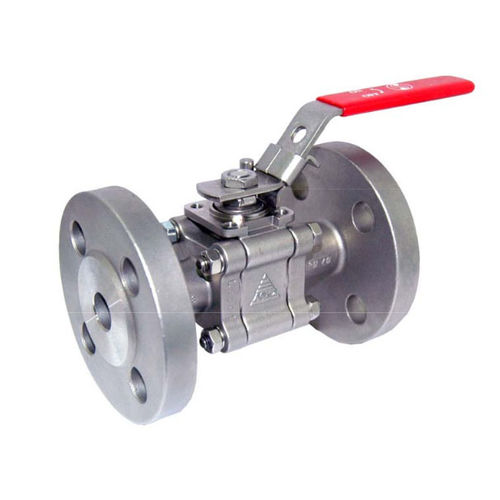

Ball valve 7034 seriesleverhydraulicfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, hydraulic
- Media
- for compressed air
- Body
- flange, 3-piece, stainless steel, PTFE
- Applications
- for the chemical industry, for oil industry applications, for pharmaceutical applications, ISO base
- Other characteristics
- ISO, full-flow, high-temperature, anti-static, fire-safe
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
40 bar
(580.2 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 220 °C
(428 °F)
Description
Size: DN 15 to 50
Connection : Flanges RF PN40
Min Temperature : -30°C
Max Temperature : +220°C
Max Pressure : 40 Bars
Specifications :
- Antistatic device, ATEX
- ISO 5211 mounting pad
- Anti blow-out stem, full bore
- Fully encapsulated bolts
- Fire safe ISO 10497 : 2010 and API 607 V.6
Materials : Stainless Steel EN 1.4408
USE :
- Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed air
- Steam : 18 bars maximum with PTFE filled with 25% carbon seat
- Steam : 30 bars maximum with PEEK seat
- Min and max Temperatures Ts : -30°C to + 220°C for stainless steel valve with PTFE filled with 25% carbon seat type Ref. 7034
- Min and max Temperatures Ts : -10°C to + 260°C for valve with PEEK seat ( optional )
- Max Pressure Ps : 40 bars
