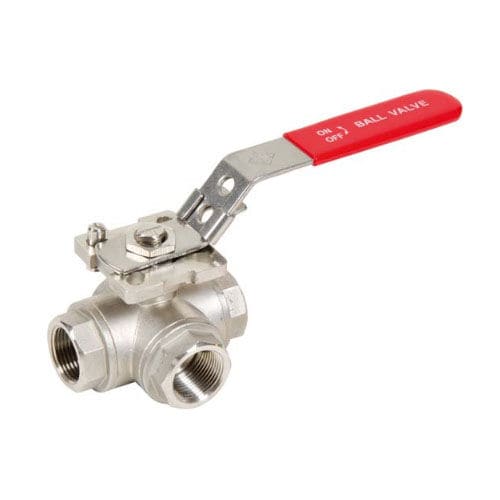

Ball valve 780 series

leverhydraulicdistribution

3 ways stainless Steel bail valve L port for dosing or mixing network of Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution and compressed air. PTFE packing and FKM O ring gasket on stem and PTFE filled with 15% glass fiber seat. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the double antistatic device. Thanks to the ISO 5211 plate, an actuator can be installed directly on the valve. SPECIFICATIONS : • - Reduced bore • - Anti blow-out stem • - PTFE filled with 15% glass fiber seat • - Double antistatic device (small bail between stem-body and stem-ball) • - Locking device • - ISO 5211 mounting pad • - Tightness on 3 ways • - L port USE : • - Chemical and pharmaceutical mdustnes. petrochemical industnes. hydraulic installation, compressed • - Min and max Température Ts : -25°C to + 180°C • - Max Pressure Ps : 40 bars ( see graph ) RANGE : • - 3 Ways bail valve stainless Steel with L port threaded BSP Ref. 7800 from DN 1/4' to 2" • - 3 Ways bail valve stainless Steel with L port threaded NPT Ref. 7803 from DN 1/4' to 2" ENDS : Threaded BSP female cylindrical ends or NPT
