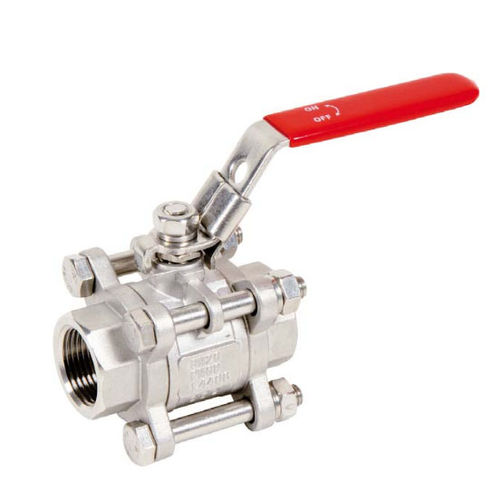

Ball valve 790 seriesleverfemale-female3-piece
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- female-female, 3-piece, stainless steel, PTFE
- Applications
- for the chemical industry, for oil industry applications, for pharmaceutical applications
- Other characteristics
- full-flow, with lockable toggle
- DN
Max.: 4 in
Min.: 0.25 in
- Pressure
Max.: 63 bar
(913.7 psi)Min.: 20 bar
(290.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
SPECIFICATIONS :
• - Full bore
• - Anti blow-out stem
• - PTFE packing
• - Locking device
• - Stem extension in Al SI 304 ( option )
USE :
• - Compatible with common fluids of 2rc group
• - Min and max Température Ts : -20°C to + 180°C
• - Max Pressure Ps : 63 bars up to DN20. 40 bars from DN25 to 50. 25 bars from DN65 to 80 and 20 bars for DN100 (see graph under)
• - Compressed air : 10 bars max
• - Do not use with steam
Stainless Steel 3 pteces bail valve Initial Range Ref. 744/790/791/792 from DN 8 to DN 100
AISI 304 stem extension Ref.9810611-9810614 from DN8 to DN50
Blue handle cover Ref. 9830584-9830588 from DN 1/2" to DN 4'
ENDS :
• - Female / female threaded BSP Ref. 790
• - Female / female threaded NPT Ref. 744
• - Socket Weldtng Ref. 792
Butt welding Ref. 791
