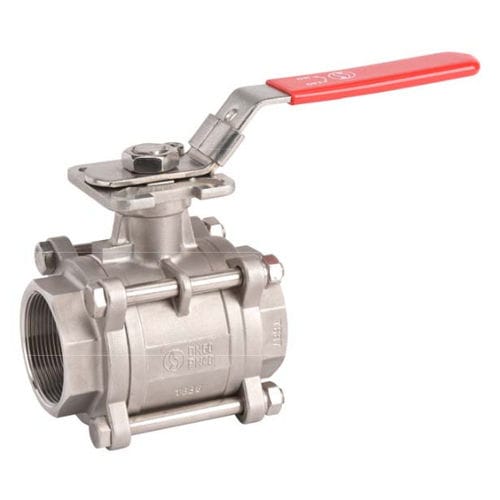

Ball valve 741 series

leverdistribution3-piece

3 pièces stainless Steel bail valve with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air. PTFE packing, FKM O ring gasket on stem and PTFE filled with 15%glass seat. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Thanks to the ISO 5211 plate, an actuator can be installée! on the valve. SPECIFICATIONS : • - Full bore • - Anti blow-out stem • - PTFE packing • - ISO 5211 direct mounting pad • - Double antistatic device (between stem-body and stem-bail) • - Atex • - Locking device USE : Compatible vwth common fluids of 2nagroup Min and max Température Ts : -20°C to + 180°C Max Pressure Ps : 63 bars up to DN3/4". 40 bars from DN1 " to DN2 (see graph under)
