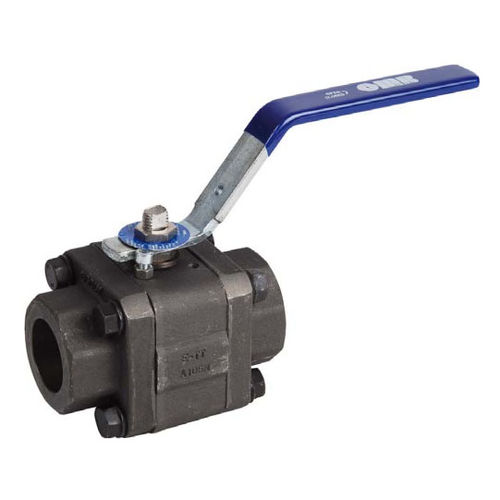

Ball valve 745 series

leverwith handwheeldistribution

3 pièces forged carbon Steel bail valve fully encapsulated bolts with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air. Bail valve with firesafe certificate API 607 to reduce risks in case of fire. Graphite packing and PTFE filled with glass seat gasket on stem, PTFE filled with glass seat. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. 3 pièces Swing type. Handling with locking device, on request possible with handwheel or T handle. Thanks to the ISO 5211 plate, an actuator can be installed on the valve. SPECIFICATIONS : • - Full bore • - Anti blow-out stem • - Packing wth elastic rings • - Double tightness on stem by PTFE filled with 25% glass fiber packing and FKM O ring • - Double tightness between body and ends by FKM O ring and graphite gasket • - Antistatic device • - Fire safe accordmg to API 607 version 4 • - Atex • - With ISO 5211 mounting pad • - Fully encapsulated bolts • - Class 800 • - On request : locking device. handwheel or T handle USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • - Steam : 16 bars maximum • - Min and max Température Ts : -29°C to + 220°C • - Max pressure Ps : 136 bars ( see graph under )
