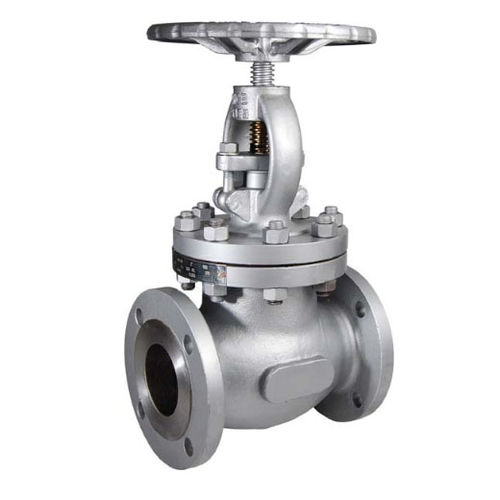

Carbon Steel globe valve TRIM8 flanged Class 300 PN50 full bore for water distribution, gas oil, steam, petrochemical, Petroleum industry and gas.
Rising and rotating stem with flexible one piece wedge.
Graphite packing for stem and gasket bonnet in stainless steel+graphite.
Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22.
SPECIFICATIONS :
• - Full bore
• - Rismg rotating stem
• - Rismg handwheel
• - Respect the flow direction indcated by the arrow
• - Flanges R.F. Class 300 (PN50)
• - Carbon Steel
• - Bolted bonnet and gland pack
• - V2 stellite ( Trim 8 . seat with stellite )
• - Grey painting RAL 7001 color. 60 pm thickness
USE:
• - Water distnbution. gas oil, steam. petrochemical. petroleum industry. gas
• - Min and max Température Ts : - 29°C to + 425°C
• - Max Pressure Ps : 50 bars
• - Tighten the gland packing in service
