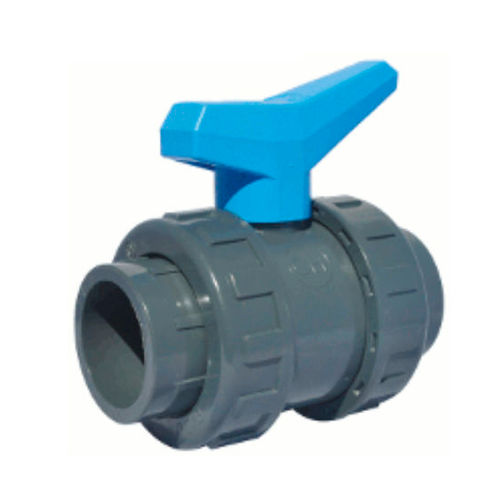

Ball valve 583 seriesmanualdistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- distribution
- Media
- for water
- Body
- female-female, 3-piece, PVC, EPDM, PP
- Applications
- for water, for swimming pools
- Other characteristics
- with operating handle
- DN
Max.: 90 mm
(3.543 in)Min.: 20 mm
(0.787 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
This device is a three piece, full-bore valve that is suitable for water distribution particularly in swimming pools. It contains a PP handle, double EPDM o ring. It has recorded an Ap maxi that can hold up to 3 bars. This device can work at maximum pressure of up to 16 bars up to DN 50,10 bars over for glued end valves, and 16 bars up DN 11/2,10 bars over for threaded ends. Moreover, it has a working temperature that can go as low as +0 °C and up to + 60°C.
