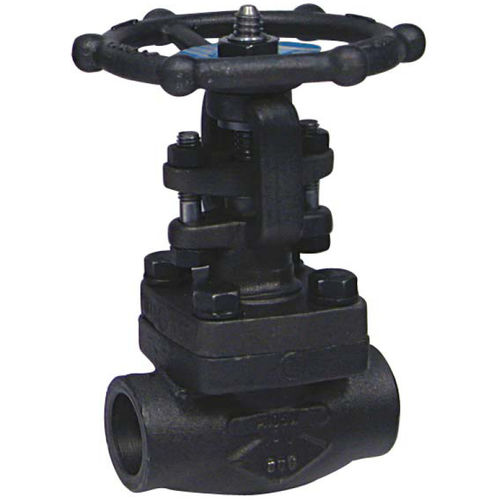

Gate valve 112 series
with handwheelpetroleumfor steam

gate valve
gate valve
Add to favorites
Compare this product


Characteristics

Type
gate
Operation
with handwheel
Media
petroleum, for steam
Body
weld, stainless steel, carbon steel, wrought steel, graphite
Applications
for oil industry applications
Other characteristics
high-pressure, standard, ATEX
DN

Max.: 50 mm
(1.969 in)

Min.: 10 mm
(0.394 in)

Pressure

136 bar
(1,972.5 psi)

Temperature

Max.: 425 °C
(797 °F)

Min.: -29 °C
(-20 °F)

Description

The product has the following specifications: reduced bore, the stem cannot be rotated, bonnet which is bolted, forged carbon or stainless steel, Trim 8 for carbon steel, Trim 10 SS 316 for stainless steel kind, weight of 800 lbs. The minimum and maximum temperature for SS types Ref. 152/153 ranges from - 29°C to + 538°C. While for carbon steel types Ref. 112/113/114, the minimum and maximum temperature ranges from - 29°C to + 425°C. The maximum pressure is 138 bar. Forged carbon Steel gâte valve TRIM8 SW Class 800 standard bore for petroleum industry, steam, oil and gas and high pressure. Rising non rotating stem (OS&Y) with bolted bonnet. Graphite packing and stainless Steel + graphite bonnet gasket. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22. SPECIFICATIONS : • - Standard port • - Rismg stem non rotating (OS&Y) • - Bolted bonnet and gland pack • - Forged Carbon Steel A105N • - Vi stellite ( Trim 8 ) • - Class 800 USE: • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 29°C to + 425°C • - Max Pressure Ps : 136 bars ( see graph )
