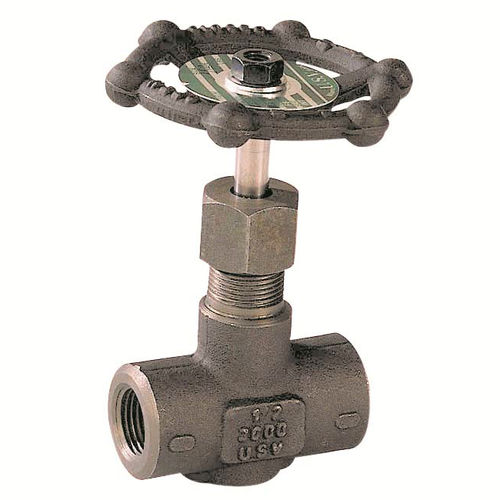

Needle valve 486 series

with handwheelpetroleumfor steam

The 3000 Psi type monobloc valve is made of carbon steel, with a reduced bore and a rising rotating system. It operates with minimum and maximum temperatures of -20°C to +250°C, respectively, with a maximum pressure of 200 bars at 20°C. The equipment must be used with respect to the flow direction indicated by the arrow. SPECIFICATIONS : • - Respect the flow direction ( mdicated by the arrow ) • - Standard port • - Rising rotating stem • - Monobloc • - Forged carbon Steel A105N • - 3000 Psi type USE: • - Petroleum mdustry. steam. high pressure • - Min and max Température Ts : - 29°C to + 250°C • - Max Pressure Ps : 200 bars at 20“C
