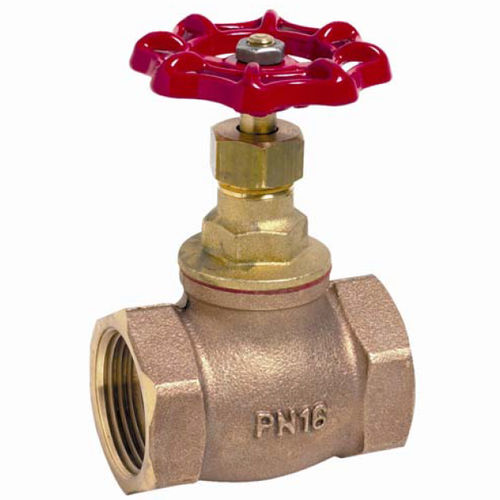

Globe valve 462 series

with handwheelfemale-femalebronze

The 462 series valve by Sferaco, has a bronze body and either PTFE or brass disc seal. It operates with common fluids of 2na group with temperature that ranges from -10°C up to 110°C. This unit also has the ability to operate at 16 bar of maximum pressure. It contains a threaded female BSP cylindrical opening, a rising stem, and hand wheel. SPECIFICATIONS : • - Respect the flow direction ( mdicated by the arrow ) • - Rising rotating stem and handwheel • - PTFE packmg • - Bronze body • - PTFE or brass dise • - Threaded female BSP cylindncal USE: • - For common fluids of 2K group • - Min and max Température Ts : - 10°C to + 110°C • - Max pressure Ps : 16 bars ( see graph ) • - Do not use for steam
