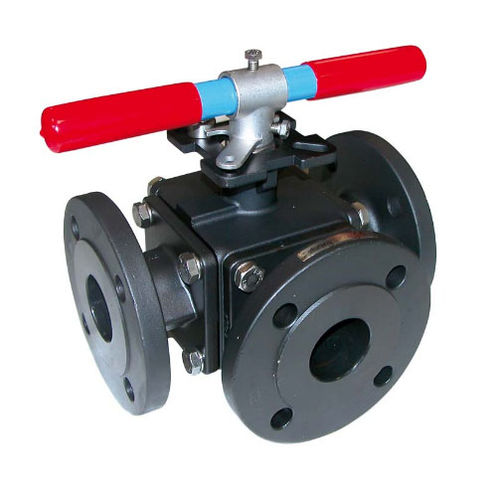

Ball valve 783 seriesmanualdistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- distribution
- Media
- for water, for oil, for compressed air
- Body
- flange
- Applications
- for the chemical industry, for heating, for oil industry applications, for water systems
- Material
- PTFE, stainless steel, carbon steel
- Number of channels
- 3-way
- Other characteristics
- ISO, full-flow
- DN
Max.: 150 mm
(5.906 in)Min.: 25 mm
(0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)
Description
This two-piece ball valve meets ISO 5211 with full bore and anti blow-out stem, with a PTFE seat filled with glass and a locking device. Tightness is on three ways and the truncated mounted ball valve ranges from DN100 to DN150.
It is beneficially used in chemical and petrochemical industries, hydraulic installation and water distribution. Users can refer to 785 and 786 for min and max temperatures -30-150°C for the stainless steel type, and 783 and 784 for the min and max temperatures of -20-150°C for the carbon steel type. It reaches maximum pressures of 16 bar.
SPECIFICATIONS ;
• - Full bore
• - Anti blow-out stem
• - Double antistatic device
• - PTFE seat filled with glass
• - Lockmg device
• - ISO 5211 mountmg pad
• - Tightnesson 3ways
• - L or T port
• - Trunnion mounted bail valve from DN100 to DN150
USE:
• - Chemical industries, petrochemical industries, hydraulic installation, heating. water distnbution. compressed
• - Min and max Températures Ts : -20°C to + 150°C
• - Max Pressure Ps : 16 bars ( see graph )
• - Do not use for vacuum
