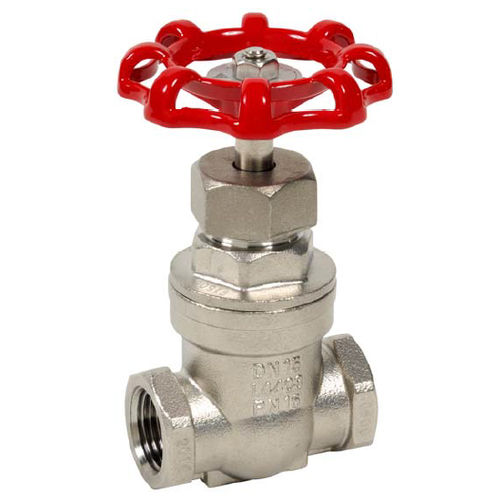

Gate valve 106 series

with handwheelfemale-femalestainless steel

Sferaco 106 series stainless steel gate valve is suitable for all common fluids. It provides a temperature range (Ts) of -20°C to + 180°C and maximum pressure (PN) of 16 bars. It has a full bore and a rotating, inside-screw non rising stem. Its bonnet is screwed and it has a single wedge. The female/female BSP cylindrical valve has a PTFE packing. Stainless Steel gâte valve female threaded BSP, full bore to close ail common fluids of 2nd group. Rotating non-rising stem with inside screw. PTFE packing on stem and PTFE bonnet gasket. SPECIFICATIONS : • - Full bore • - Rotatmg non rising stem • - Inside screw stem • - Screwed bonnet • - Single wedge • - Female / Female BSP cylmdrical • - PTFE packing USE: For ail common fluids of 2K group Min and max Température Ts : - 20°C to + 180°C Max Pressure Ps : 16 bars
