GNSS INS ER-FINS-40

miniaturefor UAVsITAR-free

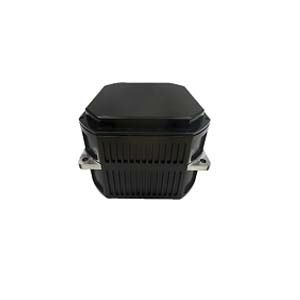

ER-FINS-40 High Precision Fiber Optic Inertial Navigation System Introduction ER-FINS-40 is an integrated navigation system with high precision and high reliability fiber optic gyroscope and quartz accelerometer, with integrated dual-antenna full-system full-frequency positioning satellite module. Equipped with integrated navigation fusion algorithm, it can provide continuous, accurate and reliable positioning, attitude and speed information under complex GNSS conditions. Can meet aviation, land and other applications. Feature Highly reliable and extremely accurate fiber optic gyroscopes (zero bias stability (1σ 100s) ≤035) and large range and high precision quartz accelerometers (±50g, stability <30ug). Built-in full-band full-system dual-antenna positioning and orientation GNSS module, which supports single-antenna high-precision positioning and velocity measurement, and supports dual-antenna fast orientation function. The system can provide extremely accurate integrated navigation information, attitude up to 0.01°, post-processing 0.004°, heading 0.05°, post-processing 0.01° Built-in shock absorber, can better adapt to large vibrations and shocks. Precision aluminum alloy shell, high reliability, can be widely used in land, aviation, navigation. Application areas Large UAV, flight data recorder, intelligent unmanned vehicle, Urban mapping, hydrological survey, Roadbed positioning and orientation,
