UAV INS ER-GNSS/MINS-07

miniaturewith integrated GPSITAR-free

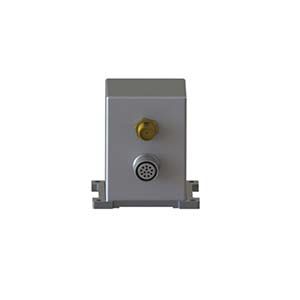

ER-GNSS/MINS-07 Low Cost Single Antenna MEMS INS Introduction ER-GNSS/MINS-07 is a Low cost single antenna GNSS aided MEMS INS with a highly reliable MEMS IMU and a single-antenna full-system dual-band satellite module. The integrated navigation fusion algorithm can provide continuous, accurate and reliable positioning, attitude and speed information. It has a variety of communication interfaces and provides standardized user communication protocols, which can meet the aviation, land, and other applications. Feature High reliability and low cost MEMS IMU. The working temperature is -40℃~+80℃. Built-in dual-band full-system single-antenna positioning GNSS module, supporting single-antenna high-precision positioning and velocity measurement. The system can provide accurate integrated navigation information, attitude up to 0.1°, heading 0.1°. Variety of data interface, more easy to install and use, support RS422/RS232 and CAN. Precision aluminum alloy shell, high reliability, can be widely used in land, aviation Application area UAV, flight recorder, ADS
