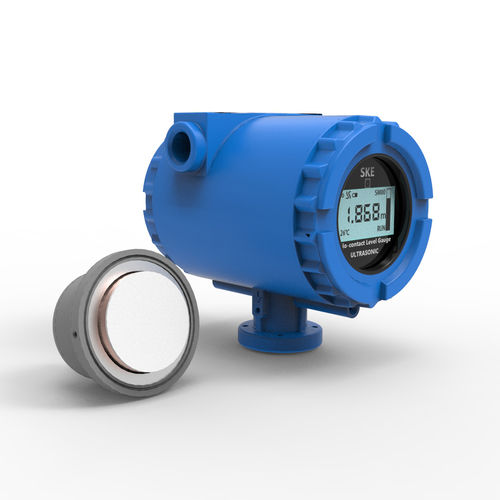

Liquids level gauge SK-WY02

ultrasonicfor tankfor marine applications

YOUR BENEFIT - Non-contact, external measurement. - Two wire system. - Do not open the tank, the installation process is safe. - Easy installation. - Automatic debugging. - Maintenance-free Summary Non-Intrusive Ultrasonic Level Gauge adopts the principle of ultrasonic echo ranging, uses the special probe externally attached to the container to collect ultrasonic signals, and uses the special algorithm to accurately calculate the liquid level position in the container. The calculated liquid level value is displayed locally and the remote signal is output. The instrument can output the result to the control center through (4 ~ 20) mA analog signal, Hart, RS-485 and other interfaces, and can also be debugged online through Hart, RS-485 / Modbus, infrared and other interfaces. Like the picture, Measure the liquid level, the sonar wave signal from the probe to launch out, after liquid level reflected, the probe detects the echo signal. Echo signal by proprietary algorithm to calculate the time (t), the system can calculate the liquid level value according to the formula. Non-Intrusive Ultrasonic Level Gauge is currently used in LPG tank, liquid ammonia, 98%sulfuric acid, etc Two-Wire Non-Intrusive Ultrasonic Level Gauge The Non-Intrusive Ultrasonic Level Gauge is in use everywhere where the level of liquids in tanks has to be measured continuously and contactlessly. Application possibilities for radar gauges can be found in almost all areas of industry. Sewage treatment plants and water purification plants in particular, but also other environmental engineering facilities as well as power generating stations now rely on cost-effective radar sensors
