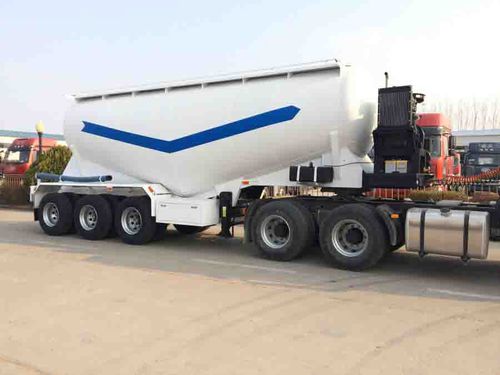

Semi-tanker semi-trailer

cement3-axle2-axle

BULK CEMENT SEMI TRAILER Tare weight 7500kg-13000kg Size According to requirements Volume 25m3-115m3 Tank body Q235A/Q345/T700 3.5mm-5mm steel sheet End plate Q235A/Q345/T700 6mm .ball shape Side protection and bumper Standard or according to your requirements Axle 2/3/4 axle FUWA/BPW/SAF/L1 brand or China local brand 131/151/161 Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Manhole cover 500mm manhole cover Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Discharge valve 4" disc valve Discharge pipe 4" seamless steel tube Outlet pipe 4" rubber hose.6m Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Engine Diesel engine: weichai brand model: 4102. Air compressor 37 KW, 0.2Mpa. 1000r/Min Compartment 1/2/3 Vehicle application Dry cement transport bulk cement transport powder material transport Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Air-charging system 2' main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge Quadratic blow 1" diameter check valve Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side light, two rear light
