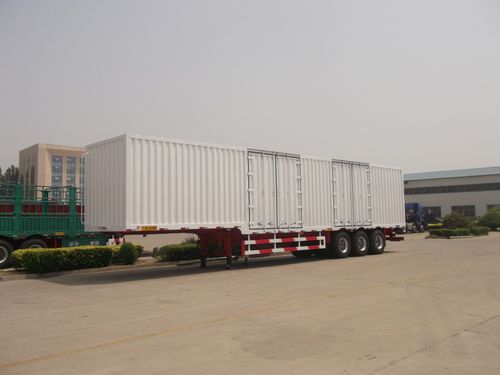

Container semi-trailer
3-axle2-axletowed

container semi-trailer
container semi-trailer
container semi-trailer
container semi-trailer
container semi-trailer
Add to favorites
Compare this product


Characteristics

Type
container
Number of axles
3-axle, 2-axle
Mounting
towed
Products carried
for cargo
Payload

Min.: 30 us ton
(27.22 t)

Max.: 50 us ton
(45.36 t)

Description

3 axle box semi trailer Tare weight 9000kg Size 9000mm-13000mm*2500mm*3000mm-3800mm Payload 30T-60T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45, welded by automatic submerged-Arc processes. Top flange 14mm,width140m m;Middle Flange 8mm height 500mm;bottom flange16mm,width 140m m Side beam 16# channel steel(Q235) Cross member 10# channel steel(Q235) Floor 1.5mm/2mm/3mm checkered plate or smooth plate Box body Height 1500mm-2300mm Thickness 1.2mm/1.5mm/2mm/3mm Door Size and type optional Side protection and bumper Standard or according to your requirements Axle 2/3 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Twist lock No Vehicle application Cargo transport grain transport Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light
