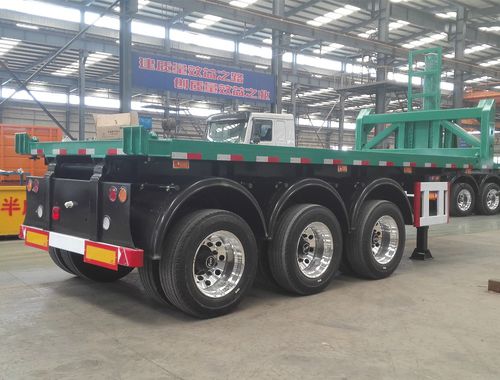

Rear dumper flatbed semi trailer
Tare weight
8000kg
Size
7700mm-800mm*2500mm*1500mm
Payload
30T-50T
Main beam
Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45, welded by automatic submerged-Arc processes. Top flange 18mm,width140m m;Middle Flange 14mm height SOOmm;bottom flange20mm,width 140m m
Floor
1.5mm/2mm/3mm
Side wall
No
Cylinder
HYVA or china brand model according design
Axle
2/3 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T
Suspension
Mechanical suspension (brand optional)
Leaf spring
Leaf spring 10pcs*90*13mm
Tire
11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional
Wheel rim
8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice
Kingpin
JOST or other brand 2" /3.5" bolt-in king pin
Landing gear
JOST or other brand two-speed, landing gear 28T
Twist lock
4pcs
Vehicle application
20ft Container transport
Braking system
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS
Optional
Light
LED 8 side lights and 2 rear lights 2 width lamp
Painting
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories
One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side light, two rear light
