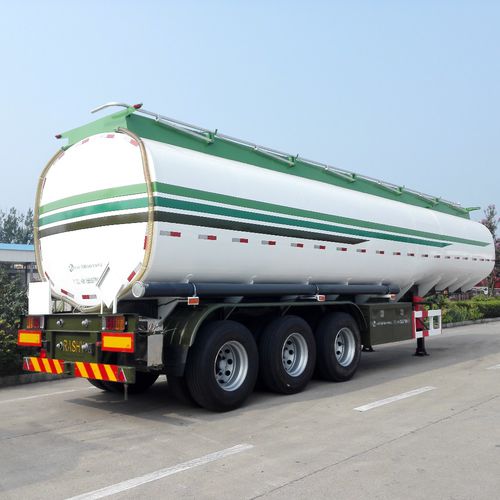

Semi-tanker semi-trailer
3-axletowed

semi-tanker semi-trailer
semi-tanker semi-trailer
semi-tanker semi-trailer
semi-tanker semi-trailer
Add to favorites
Compare this product


Characteristics

Type
semi-tanker
Number of axles
3-axle
Mounting
towed
Payload

Max.: 10,500 kg
(23,148.54 lb)

Min.: 8,500 kg
(18,739.29 lb)

Description

Tare weight 8500kg-10500kg Size According to design Volume 40m3 Tank body Carbon steel Q235 5mm End plate Carbon steel Q235 6mm Side protection and bumper Standard or according to your requirements Axle 3 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Discharge valve 4" disc valve Discharge pipe 4" seamless steel tube Bottom valve 1 set/compartment Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Compartment Single or according to your requirements Vehicle application Oil fuel diesel transport edible oil transport Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint Acessories 0ne standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light, fire extinguisher
