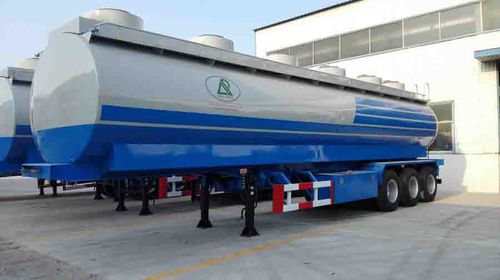

2-axle semi-trailer
3-axle4-axlesemi-tanker

2-axle semi-trailer
2-axle semi-trailer
2-axle semi-trailer
2-axle semi-trailer
2-axle semi-trailer
2-axle semi-trailer
2-axle semi-trailer
Add to favorites
Compare this product


Characteristics

Number of axles
3-axle, 2-axle, 4-axle
Type
semi-tanker
Payload

Min.: 8,500 kg (18,739.29 lb)

Max.: 10,500 kg (23,148.54 lb)

Description

OIL TANKER SEMI TRAILER Tare weight 8500kg-10500kg Size According to design Volume 25m3-80m3 Tank body Carbon steel/stainless steel 304, 316/aluminum alloy 5083, 5050, 518 2 End plate Carbon steel/stainless steel 304, 316L/aluminum alloy 5083, 5050, 518 2 .ball shape Side protection and bumper Standard or according to your requirements Axle 2/3/4 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/161 Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Discharge valve 4" disc valve Discharge pipe 4" seamless steel tube Bottom valve 1 set/compartment Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Compartment Single or according to your requirements Vehicle application Oil fuel diesel transport edible oil transport Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light, fire extinguisher
