Nutating disc flow meter MFE600H

volumefor waterfor hot water

Product overview

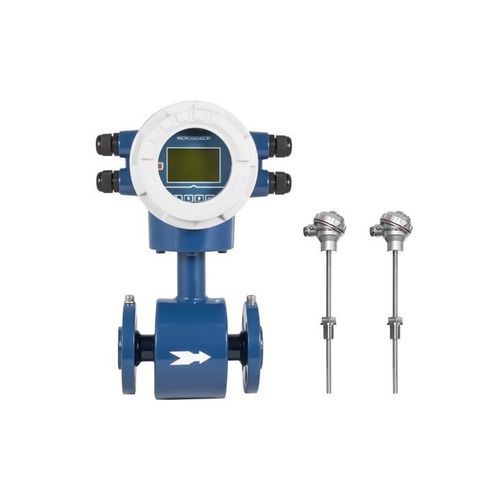

Micro Sensor's MFE600H series electromagnetic flowmeter measures thermal energy and cold quantity. The energy meter is supplied with 2 Pt1000 temperature sensors as standard, eliminating the need for an external totaliser. The unit is easy to install and reduces installation costs. The converter uses a low-power MCU and SMD/SMT components for reliable performance, high accuracy, low power consumption and a stable zero point. The display is intuitive and the instrument is simple to operate and maintain.

Advantages

• Multi-electrode structure for high accuracy; built-in grounding electrode on many sizes removes need for grounding ring and reduces cost.
• EEPROM retains parameter settings and cumulative values during power loss.
• No mechanical inertia — fast response; capable of measuring instantaneous pulsating flow with good linearity.
• Low-frequency rectangular-wave excitation improves flow stability and low-flow performance with low power loss.
• Available in separated (remote converter) and integrated (compact) structures.
• Wide diameter coverage: DN6 ~ DN1600 (varies by connection type).

Technical table
Diameter | Type | Range / Note
Flange type | DN6~DN1600, ≥DN20 with built-in grounding electrode
Wafer type | DN25~DN200
Threaded type | DN10~DN50
Clamp type | DN15~DN150
Pressure port | | ANSI 1/2 NPT, JIS G1/2, ISO M20×1.5
Measurement accuracy | | ±0.2% (DN10~DN350); ±0.5% (DN6~DN1600)
Output signal | | 4mA~20mA DC / HART, frequency, pulse output, RS485
Electrical connection | | ISO M20×1.5
IP protection | | IP65; IP67; IP68
Power consumption | | ≤5W
Operating temperature | | -20℃ ~ 60℃
Storage temperature | | -40℃ ~ 60℃
Relative humidity | | 5% ~ 90%

Industry application

• Central heating measurement
• Heating systems
• Heat measurement for air conditioning in residential buildings
• Office buildings, enterprises and institutions

Download

• Data sheet
• CNEX certificate
• PCEC certificate
• CE certificate
• EAC certificate
• ATEX certificate

Technical specifications

• Product type: Electromagnetic energy (heat) flowmeter, MFE600H series.
• Functions: Measures cold quantity and heat quantity; supplied with 2 Pt1000 sensors as standard; no external totaliser required.
• Signal processing: Low-power MCU converter with SMD/SMT components for stable, accurate measurement.
• Settings retention: EEPROM protects parameter settings and cumulative values on power off.
• Electrodes: Multi-electrode structure; many sizes include a built-in grounding electrode.
• Response: No mechanical inertia; sensitive response; suitable for instantaneous and pulsating flows with good linearity.
• Excitation: Low-frequency rectangular-wave excitation for improved stability and low-flow characteristics.
• Structure: Separated type (remote converter) and integrated type (compact).
• Connection/diameter options: Flange DN6~DN1600 (≥DN20 with built-in grounding electrode); wafer DN25~DN200; threaded DN10~DN50; clamp DN15~DN150.
• Pressure port standards: ANSI 1/2 NPT, JIS G1/2, ISO M20×1.5.
• Measurement accuracy: ±0.2% (DN10~DN350); ±0.5% (DN6~DN1600).
• Outputs: 4mA~20mA DC / HART, frequency, pulse output, RS485.
• Electrical connection: ISO M20×1.5.
• IP rating: IP65, IP67, IP68.
• Power consumption: ≤5W.
• Operating temperature: -20℃ ~ 60℃; Storage: -40℃ ~ 60℃.
• Relative humidity: 5% ~ 90%.
