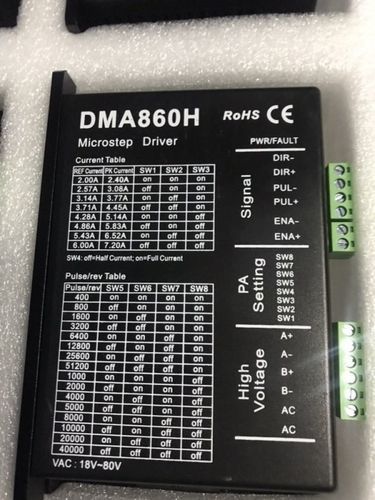

Stepper motor driver DMA860H

DCBLDCtwo-phase stepper

Drive 4 – wire, 8 – wire two – phase stepper motorVoltage input range: 20-110VAC 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24vdc level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor1. Electrical index2. Interface definition3. Driver signal mode settingThe DMA860H driver’s signal mode is set by 3 jumpers on the PCB board.4. Driver wiring diagramProduct Category: Stepper Motor Driver, 2 Phase Stepper MotorTags: bldc motor, closed loop motor, DC servo Motor, driver, stepper motor, stepper motor driverTechnical Specifications / Features:Drive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-110VAC, 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control to reduce motor heatingSignal mode set by 3 jumpers on PCB
