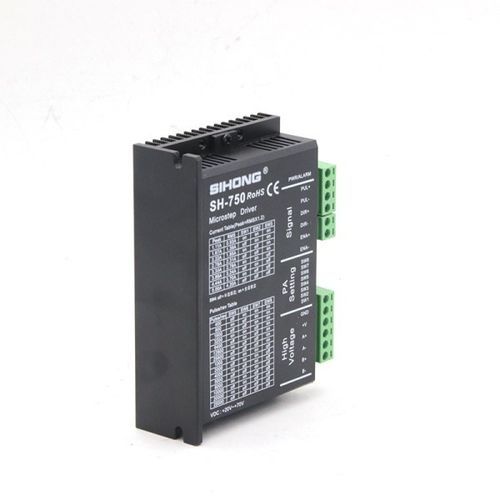

Two-phase stepper motor driver SH-750

Drive 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~70 VDCCurrent maximum: 5.0A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor1. Electrical index2. Interface definitionA: Power interface3. Dial code settingSH-750 driver adopts 8-bit dial code switch to set subdivision, running current and static half current.Detailed description is as follows:1) Operating current setting2) Segmentation3) Setting of control signal mode4) SH-750 driver signal mode is set by 3 jumpers of PCB board4. Use environment and parameters5. Controller wiring diagram6. Installation DimensionDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~70 VDCMaximum current: 5.0A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor8-bit dial code switch for subdivision, running current, and static half currentSignal mode set by 3 jumpers on PCB
