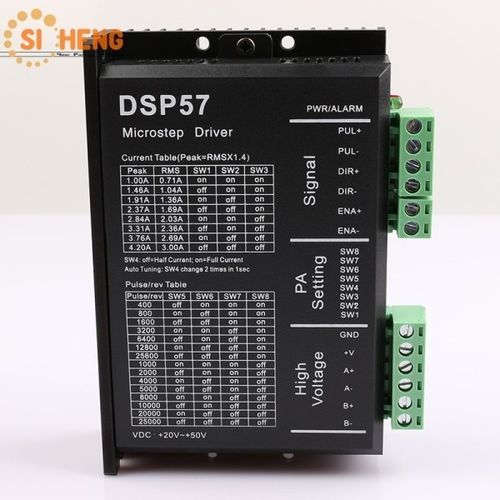

Two-phase stepper motor driver DSP57

Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd
Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd
Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd - image - 2
Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd - image - 3
Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd - image - 4
Two-phase stepper motor driver - DSP57 - Shanghai Siheng Motor Co., Ltd - image - 5
Add to favorites
Compare this product

Characteristics

Other characteristics
two-phase stepper

Description

Drive 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-60VDCCurrent maximum: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorElectrical indexPower interfaceDriver signal mode settingDriver Wiring DiagramDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-60VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor
