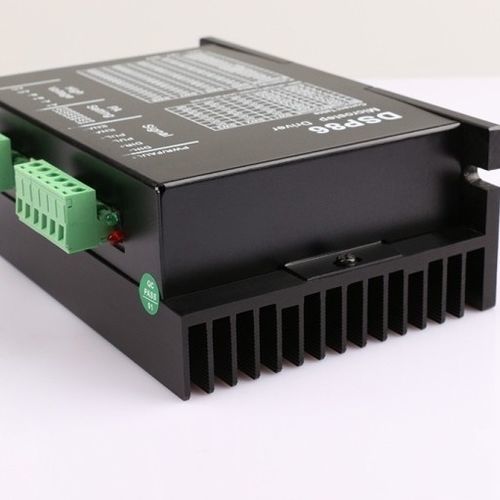

Stepper motor driver DSP86
two-phase stepper

Stepper motor driver - DSP86 - Shanghai Siheng Motor Co., Ltd - two-phase stepper
Stepper motor driver - DSP86 - Shanghai Siheng Motor Co., Ltd - two-phase stepper
Stepper motor driver - DSP86 - Shanghai Siheng Motor Co., Ltd - two-phase stepper - image - 2
Stepper motor driver - DSP86 - Shanghai Siheng Motor Co., Ltd - two-phase stepper - image - 3
Stepper motor driver - DSP86 - Shanghai Siheng Motor Co., Ltd - two-phase stepper - image - 4
Add to favorites
Compare this product

Characteristics

Other characteristics
stepper, two-phase stepper

Description

Drive 4 – wire, 8 – wire two – phase stepper motorVoltage input range: 18~80 VACCurrent maximum: 6.0ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorElectrical indexPower interfaceSubdivision settingController wiring diagramDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~80 VACMaximum current: 6.0ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor
