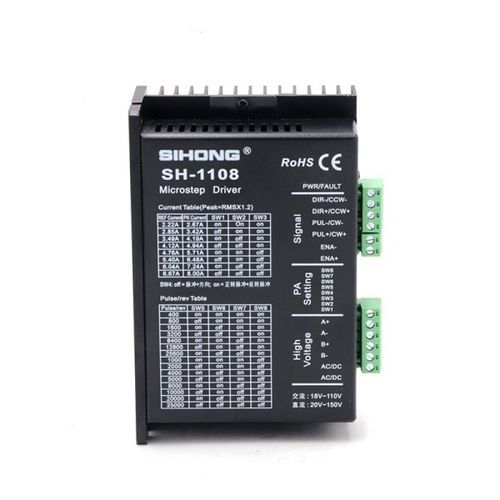

Motor driver SH-1108

Input Voltage: 18-1100VACMaximum Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200 (difference/single-end, pulse/direction or double-pulse)Impulse Response Frequency: 200kHzOn-power parameter automatic setting functionPrecision current control significantly reduces motor heating.Product Details:1. Electrical IndexA. Control Signal InterfaceB. High Voltage Interface2. Dial Code SetThe SH-1108 driver uses an eight-bit dial code switch to set subdivision precision, dynamic current, static half current, and to achieve self-setting of motor parameters and internal adjustment parameters.Detailed description:1) Working (dynamic) current settingDial 4, OFF = pulse plus direction mode, ON = double pulse input mode2. Control Signal Mode SettingThe SH-1108 driver signal mode is set by three jumpers on the PCB board.3. Controller Wiring Diagram4. Installation DimensionTechnical Specifications:Input Voltage: 18-1100VACMaximum Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200Impulse Response Frequency: 200kHzAutomatic parameter setting on power-upPrecision current control for reduced motor heatingEight-bit dial code switch for parameter settingsSignal mode settable by PCB jumpers
