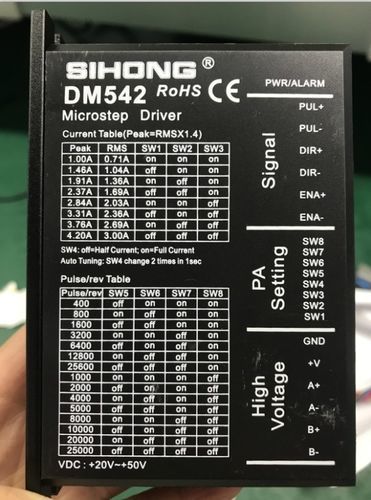

Stepper motor driver DM542

BLDCtwo-phase stepper

Drive 4 – wire, 8 – wire two – phase stepper motorVoltage input range: 20-50 VDCCurrent maximum: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motor1. Electrical indexA: Power interface2. Dial code setting1) Operating current settingCategories: 2 Phase Stepper Motor, Stepper Motor DriverTags: bldc motor, closed loop motor, DC servo Motor, driver, stepper motor, stepper motor driverTechnical Specifications / Features:Drive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-50 VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control to reduce motor heating
